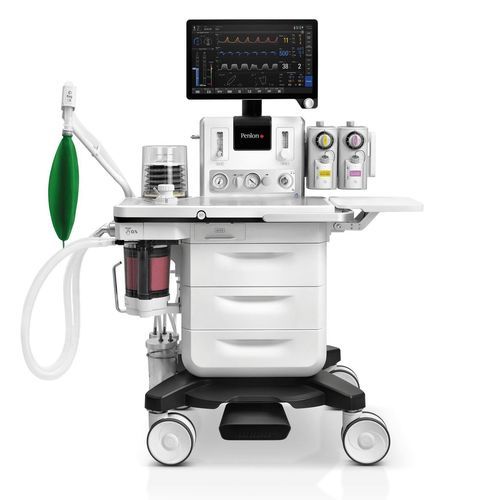

Trolley-mounted anesthesia workstation Supaera 50

with respiratory monitoringwith ventilatorwith electronic gas mixer

Overview
The Supaera 50 is Penlon's modular anaesthesia delivery system designed for perioperative clinical use. Its compact, flexible layout integrates ventilation, gas delivery and workstation features to support consistent anaesthesia management across a range of procedures.

Key benefits

• Advanced breathing modes and lung recruitment
• Low-flow capability with EcoAssist software
• HL-7 connectivity and CyberSecure protections
• Optional CO₂ or full gas analysis including paramagnetic O₂
• Optional integrated BIS/NMT monitoring

Features (summary)

• 18.5-inch TFT touchscreen display with intuitive user interface, electronic gas mixer and digital flowmeters
• Up to eleven ventilation modes
• Cardiac Bypass Mode and single-step and multi-step lung recruitment
• Flow Pause function
• Automatic start-up, circuit and manual leak tests
• GCX compatible uprights as standard and optional GCX patient monitor mount
• Illuminated workspace with optional auxiliary work surface
• Capacity for up to three cylinders
• Large-capacity drawer units with one lockable drawer
• Built-in vacuum or venturi suction
• Integrated low-volume heated absorber
• Built-in high-, low-flow or passive AGSS receiver
• EcoAssist for efficient flow control

Advanced Ventilator Modes
Eleven ventilation modes (VCV, PCV, SIMV-VC, SIMV-PC, PSV, SMV, PRVC, SIMV-PRVC, CPAP, APRV, Manual) with PEEP available in all modes.

EcoAssist Low-flow Software
EcoAssist predicts oxygen requirements in the fresh gas flow to reduce the risk of hypoxic mixtures and to optimise gas usage during low-flow anaesthesia.

Lung Recruitment
The lung recruitment tool offers single-step or multi-step sustained inflation manoeuvres and provides guidance on optimal PEEP to improve gas exchange.

Technical specifications

• Display: 18.5-inch TFT touchscreen with intuitive user interface
• Gas delivery: Electronic gas mixer and digital flowmeters
• Ventilation modes: Up to 11 modes (VCV, PCV, SIMV-VC, SIMV-PC, PSV, SMV, PRVC, SIMV-PRVC, CPAP, APRV, Manual)
• PEEP: Available in all ventilation modes
• Special modes: Cardiac Bypass Mode; single-step and multi-step lung recruitment
• Low-flow: EcoAssist low-flow capability and oxygen prediction software
• Monitoring options: Optional CO₂ or full gas analysis including paramagnetic O₂; optional integrated BIS/NMT monitoring
• Connectivity: HL-7 connectivity and CyberSecure
• Safety/utility: Flow Pause, automatic start-up, circuit and manual leak tests
• Mounting: GCX compatible uprights standard; optional GCX patient monitor mount
• Workspace: Illuminated workspace with optional auxiliary work surface
• Storage: Large-capacity drawers with one lockable drawer
• Cylinders: Capacity for up to three cylinders
• Suction: Built-in vacuum or venturi suction
• Absorber: Integrated low-volume heated absorber
• AGSS: Built-in high-, low-flow or passive AGSS receiver
