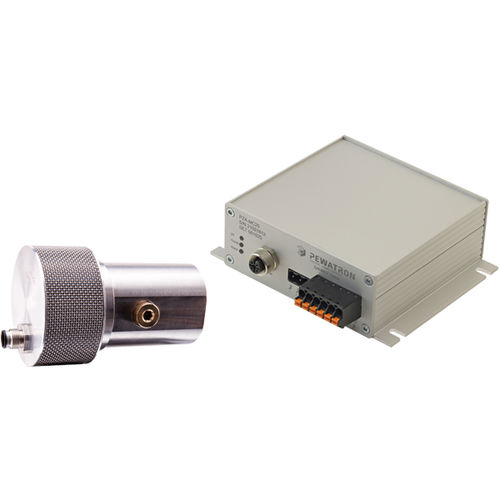

Oxygen sensor PZA-MC25-P
flowmedical

oxygen sensor
oxygen sensor
Add to favorites
Compare this product


Characteristics

Evaluation type
flow, oxygen
Applications
medical

Description

Product type Gas sensor transmitter Device type Stationary Technology Zirconia Output signal 4-20 mA Supplier Pewatron Measuring range 0-1000 ppm, 0-25 % Gasflow Forced flow Approvals No Features Zirconia, long lifetime, integrated transmitter Product description Adjustable measuring range; 0...1000 ppm & 0...25 % O2 Oxygen measuring device with a Zirconia Sensor The oxygen sensor module PZA-MC25 is a complete solution for oxygen concentration measurement in the range from 1 ppm and up to 25 Vol% O2. The oxygen sensor is a potentiometric zirconia based cell with high realibility and high accuracy. Features • Standard measurement ranges: 0 …1000 ppm & 0…25 Vol% O2 Adjustable measuring range between 1 ppb O2 & 100 Vol% O2 • Lifetime > 20.000 hours in air • Calibration cycle 1 year, no drift • Easy process adaption for diffusion (PZA-MC25-N) and flow (PZA-MC25-P) based measurements • Bluetooth interface for easy servicing & PC software for data logging • Android APP for visualization • Excellent longtime stability • Excellent resolution in ppb/ppm range • Analog output: 4...20mA linear • RoHS/Reach conform • Manufactured in EU
