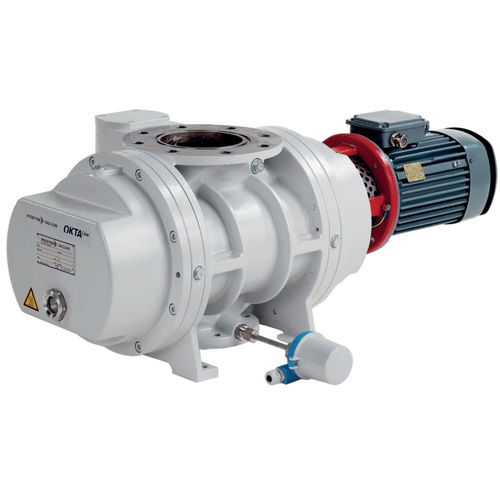

Laboratory vacuum pump Okta 2000 ATEX series

Roots

Roots pump with a pumping speed of 1,080 to 2,585 m3/h: Product description Hermetically sealed, through magnetic coupling, leakage rate < 1 · 10-6 Pa m3/s With 3-phase motor II 2G Ex de IIC T4 Pressure surge resistant up to 1600 kPa No thermal overload thanks to integrated temperature sensor For ATEX applications (directive 2014/34/EU) Okta 2000 ATEX, Roots pump, 230/400 V, 50 Hz | 265/460 V, 60 Hz | Ex II 3/3G Ex h IIB T3 Gc X +5 °C ≤ Ta ≤ +40 °C Order number: PP W63 300 High-performance Roots pump with a pumping speed of 1080 to 2585 m3/h Blocked overflow valve For operation with frequency converter or switch-on at a defined backing pressure, i.e. for continuous processes With 3-phase motor II 2G Ex de IIC T4 Pumps are hermetically sealed (leak rate <1 · 10-6 Pa m3/s) – risk of zone entrainment is minimized Pressure surge resistance according to EN 1333, PN level 16 Explosion safety due to reliable construction and temperature monitoring – installation without additional flame arrester possible Note: For the operation of the pumps, the terms of the operating instructions apply. We are pleased to provide you with the right solution for your application! Working conditions: Pump is inside and outside suitable for operation in equipment class II, equipment category 3(G) for gases and vapors of explosion class IIA and IIB, temperature class T3 according directive 2014/34/EU -Pumps are suitable for operation with FC. Other voltages 50 Hz: 200 V, 220/380 V, 380/660 V, 415 V and 60H z: 200 V, 220/380 V, 230/400 V, 380/ 660 V, 400/690 V, 440/760 V, 480 V are available. Stainless steel 1.4059 available on request.
