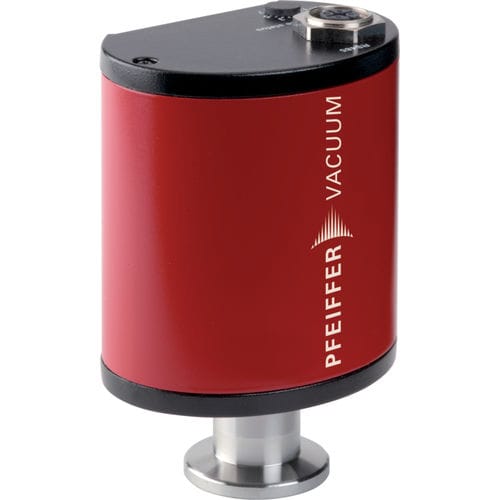

Digital vacuum gauge DigiLine CPT 200 series

laboratory

Piezo-resistive Gauge CPT 200 (1 – 2000 hPa) The CPT 200 gauge affords accurate measurements from 1 to 2000 hPa, independently of the type of gas. With its rugged metallic case and the digital interface, this gauge is especially suitable for operation in vacuum and other systems. Product description Robust Piezo sensor Measurement range from 1 to 2000 hPa Gas type independent measurement CPT 200, DN 16 ISO-KF, RS-485 Order number: PT R36 130 1 to 2000 hPa Robust sensor Gas type independent measurement Technical data Accuracy (Full Scale): > 1200 hPa 1 % Accuracy (Full Scale): 1 – 1200 hPa 0.1 % Ambient temperature 5-60 °C | 41-140 °F | 278-333 K Bakeout temperature at the flange 70 °C | 158 °F | 343 K Full scale 2,000 hPa | 1,500 Torr | 2,000 mbar I/O interfaces RS-485 Materials in contact with media Ceramic, Stainless Steel, FPM Measurement range 1 · 103 hPa | 7.5 · 102 Torr | 1 · 103 mbar Measuring cycle 10 ms Method of measurement Piezo Nominal diameter DN 16 ISO-KF Pressure max. 4,000 hPa | 3,000 Torr | 4,000 mbar Protection category IP54 Seal FKM Sensor cable length min. 100 m Supply: power consumption 1.5 W Supply: Power consumption max. 1.5 W Temperature: Storage -40-65 °C | -40-149 °F | 233-338 K Weight 190 g CPT 200, DN 16 ISO-KF, RS-485, analog Order number: PT R36 131 1 to 2000 hPa Robust sensor Gas type independent measurement Analog output and set points Technical data Accuracy (Full Scale): > 1200 hPa 1 % Accuracy (Full Scale): 1 – 1200 hPa 0.1 % Ambient temperature 5-60 °C | 41-140 °F | 278-333 K Bakeout temperature at the flange 70 °C | 158 °F | 343 K Full scale 2,000 hPa | 1,500 Torr | 2,000 mbar
