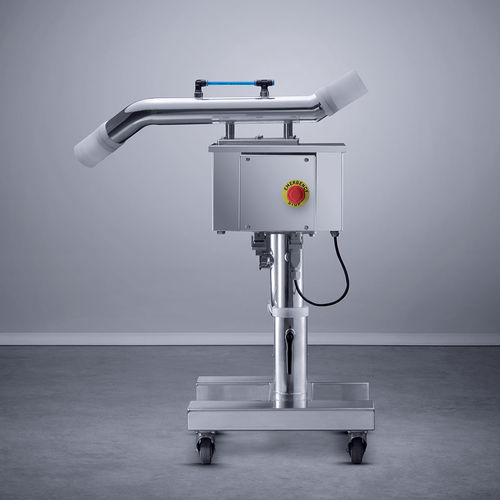

Vibrating conveyor LV
for the pharmaceutical industryhorizontalmobile

vibrating conveyor
vibrating conveyor
Add to favorites
Compare this product


Application domain
for the pharmaceutical industry
horizontal, mobile
Product transported
for capsules, for tablets


The linear vibrator is used to convey tablets and capsules horizontally from one point to another. Compatible with the deduster/polisher Available in 3 lenghts: 800, 1000, 1200 mm Easy to clean Easy to disassemble Compact footprint FDA approved material The linear vibrator is mainly used to overcome difficult room configurations, like for example to overcome the wall concept. The LV is already in “DT” Dust Tight and it can be easily upgraded to “C” Containment ≤0EB4, and “HC” High Containment ≤0EB5 washable versions. Products to process - Tablets / Capsules Dedusting technology - Horizontal conveying Air jet - N/A Deburring option - N/A Conveyor material - 316L stainless steel spiral tube Capacity / Speed - High Micro tablets Diam 2,5 mm - Up to 5.000.000.-Tabs/h Small Tablets Diam. 5 mm - Up to 3.000.000.-Tabs/h Medium Tablets Diam. 13 mm - Up to 400.000.Tabs/h Effervescent Tablets Diam. 20 mm - Up to 125.000.Tabs/h Small capsules T4 - Up to 750.000.-Tabs/h Large capsules T0 - Up to 300.000.-Tabs/h Interfacing / Connectivity - Inlet height - Low Line - Adjustable from 620 to 710 mm Standard Line - Adjustable from 760 to 850 mm High line - N/A Available elevation heights - 800 / 1000 / 1200 mm Accessories - Metal check - N/A Diverter - N/A Tester - N/A Regulations - Operator Exposur Level - Up to OEL 5 Noise level - Low emision Max. 72db(A) GMP compliance - Yes CE compliance - Yes Cleaning and Dismantling - Manual cleaning - Easy access for cleaning / No tools required Automatic cleaning - Washing in Place - Washing Of Line
