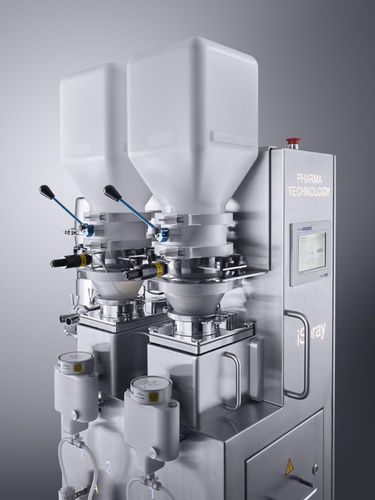

Lubrication system for the pharmaceutical industry iSpray

The iSpray is a unique punch face and die wall lubrication system that continuously sprays dry lubricant onto tablet press delivering a consistent and verifiable amount of dry lubricant onto the tablet outer surface. Key benefits Very Accurate dosing Continuous control of lubricant thanks to the flow measuring device No recirculation of lubricant thanks to the high under pressure vacuum system Pressure monitoring to automatically switch the back-up line Back-up line to continue running in case of pipe blockage Easy to install in any kind of tablet presses with customizable spray nozzles Easy dismantling - Fast and easy cleaning Standard "DT" Dust Tight and available in "C" Containment Central HMI with OPC UA, CFR 21 Part 11 compliant The surplus of lubricant is eliminated by vacuum directly on the spray nozzle, then collected in a removable bin. iSpray has several innovatively-designed features, including a compact double-sided nozzle that fits most rotary table presses for optimal coverage of most tool sizes, and a backup line with a pressure sensor built into each nozzle, which automated switching between lines that, in doing so, helps avoid costly interruptions due to a potential blockage. For recipe storage, the system is equipped with a touch screen HMI with audit trail recording, compliant with FDA. iSpray helps reduce the amount of dry lubricant in the compression blend, while applying an optimized amount of lubricant to the upper punch face, die wall, and lower punch face.
