IV catheter band AluBurn

armadhesive

Product description

Description

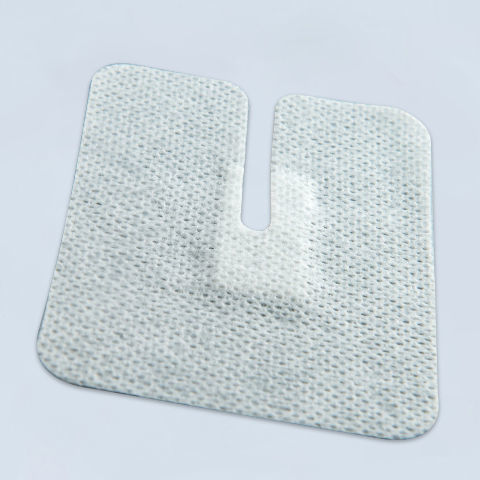

AluBurn I.V. is a catheter and cannula fixation dressing composed of a spun-laced nonwoven polyester substrate coated with a pressure-sensitive adhesive. The dressing incorporates a central aluminized AluBurn element with a U-shaped slit to permit secure and easy fixation of catheters, cannulas and tracheostomy tubes.

Features

• Aluminized polyethylene net: serves as a non-adherent layer that prevents adherence to new tissue while remaining permeable to exudate to reduce the risk of maceration.
• Hydrophilic absorbent fleece to manage moderate exudate.
• Soft, conformable construction for improved patient comfort and good contact on curved surfaces.
• Breathable: permeable to air and water vapour to support the local skin environment.

Indications
– Designed for fixation of peripheral and central venous catheters, cannulas and tracheostomy tubes.

Contraindications
There are no absolute contraindications, but do not use in patients with known hypersensitivity to any component of the dressing.

Precautions
– Single use only; reuse may cause infection or cross-contamination.
– Not recommended for heavily exuding wounds due to risk of maceration.
– Apply only to clean, dry skin to ensure adhesive performance.
– Dispose of as contaminated clinical waste according to local regulations.

Layer diagram
An illustrative layer diagram is available on the product page.

How to use
1. Open the sterile pouch using aseptic technique. For AluBurn I.V. Film variants, hold the dressing at both sides of the wave cut and stretch the backing paper slightly to loosen the wave cut.
2. Remove the release flaps to expose the adhesive surface.
3. Position the dressing centrally over the insertion site and align the U-shaped slit around the catheter or cannula. Remove any lower release flaps if present.
4. For film variants, slowly peel off the upper backing while smoothing the transparent film edges to avoid creasing.

Sizes & Codes

• ALUBIV6070 | 6 x 7 cm | 100 pieces/case | 16 boxes/case
• ALUBIV7070 | 7 x 7 cm | 100 pieces/case | 16 boxes/case
• ALUBIV7080 | 7 x 8 cm | 100 pieces/case | 16 boxes/case
• ALUBIV80100 | 8 x 10 cm | 100 pieces/case | 16 boxes/case
• ALUBIV82100 | 8.25 x 10 cm | 100 pieces/case | 16 boxes/case
• ALUBIV6085 | 6 x 8.5 cm | 100 pieces/case | 16 boxes/case
• ALUBIV7085 | 7 x 8.5 cm | 100 pieces/case | 16 boxes/case
• ALUBIV85100 | 8.5 x 10 cm | 100 pieces/case | 16 boxes/case
• Other sizes available on request

Downloads
AluBurn family brochure and the IFU (Instructions for Use) image are available on the product page.

Technical specifications

• Brand: Pharmaplast
• Commercial name: AluBurn I.V.
• Substrate: Spun-laced nonwoven polyester
• Non-adherent layer: Aluminized polyethylene net
• Adhesive: Pressure-sensitive adhesive on substrate
• Design: Central AluBurn element with U-shaped slit for catheter/cannula fixation
• Absorbent layer: Hydrophilic absorbent fleece
• Properties: Soft, conformable, breathable (permeable to air and water vapour)
• Primary use: Fixation of catheters, cannulas and tracheostomy tubes
• Packaging examples: 100 pieces per case; 16 boxes per case (varies by code/size)
