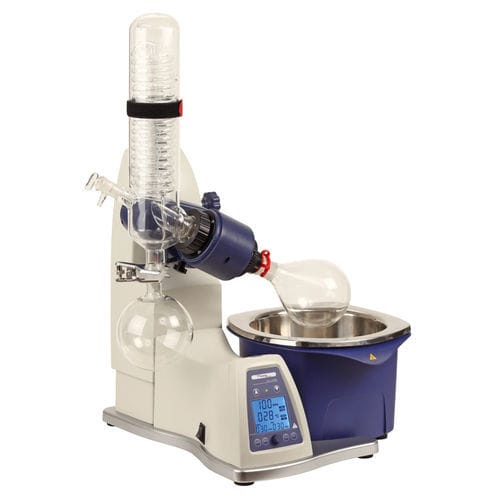

Laboratory evaporator RE-100D

rotary

• Huge, easy-to-read LCD display, indicates temperature, speed and time • Speed range from 20 to 280 rpm • Large 5 l water/oil heating bath with heating temperature range of RT to 180 °C • Heating bath with precise temperature control and adjustable safety circuit • Patented condenser cooling surface 1,500 cm2 with excellent cooling effect • Motorized lift with quick-action, automatic release evaporating flask to top position in case of power failure • Adjustable final position recognition to protect operator and sample against breakage • Evaporating flask with an ejector, convenient to remove • Available with timer function to precise control processing • Interval operation left/right Voltage • Frequency 100-240 V • 50/60 Hz Power 1,400 W Motor brushless DC Speed display LCD Temperature RT to 180 °C Accuracy Heating ± 1 °C Heating power 1,300 W Temperature display LCD Lift Motor Stroke 150 mm Timer control Yes Time display LCD Operation time 1-999 min Dimension 600 x 450 x 820 mm Weight 19 kg Ambient temperature 5 - 40 °C Relative humidiy 80 % Protection class IP20
