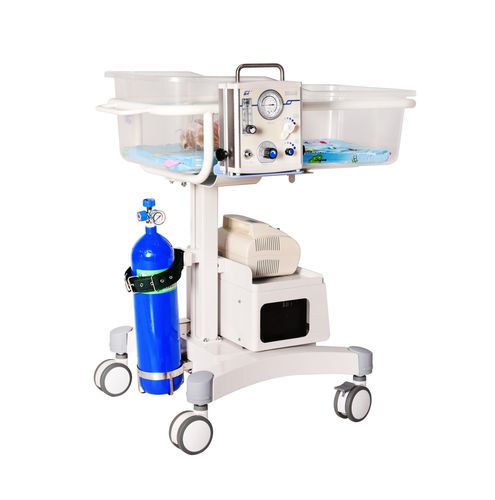

TP00004 Neonate Transport Cart: With the innovative and integrative design, it changes the traditional way of nosocomial transfer. The flow and CPAP are precise and controllable. Large diameter casters with double brakes and low noise make the transfer more stable and flexible. The oxygen concentration can be adjusted accurately that meets oxygen safety instructions. Equipped with a hospital air compressor and UPS, it can continuously work for around 40min~120min. A variety of masks can be supplied to satisfy different requirements. A spacious and comfortable bed is equipped with a maximum load of 20Kg
Working Principle of TP00004 Neonate Transport Cart
Without wired power supply, the portable, efficient and sustainable UPS is connected to the miniature air compressor/oxygen cylinder. The recovery machine is an all-in-one machine with built-in air oxygen mixer and pressure gauge to precisely adjust the air oxygen concentration ratio to achieve the best breathing cycle.
Features of TP00004 Neonate Transport Cart
Built-in air oxygen Blender/pressure gauge, accurate and integrated design, save optimization space.
Micro air compressor, small capacity easy to adjust, newborn/infant oxygen intake is absolutely safe.
The whole respiratory system can be portable and mobile, convenient for emergency and rescue.
Specification of TP00004 Neonate Transport Cart
Respiratory Mode - Infant Resuscitator
Air-oxygen Blender - Built-in
Flow - 0-15LPM
FIO2 - 21-100%
Pressure Limit (MAX-P) - 20-60cm H2O, @5-15LPM
Peak Inspiratory Pressure (PIP) - 2-57cm H2O, @5-15LPM
Positive End-expiratory Pressure (PEEP) - 0.3-23cm H2O, @5-15LPM
