Phlebology laser S1Pro

skin rejuvenationvulvo-vaginal rejuvenationlipolysis

Overview

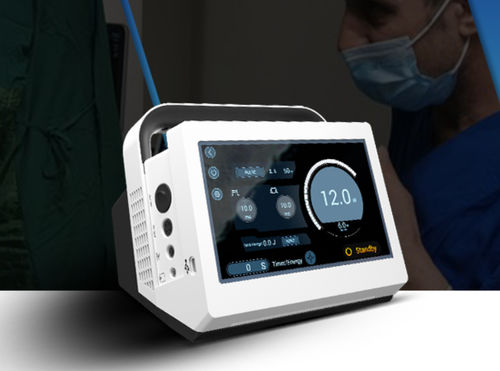

The S1Pro stands out in the medical laser design industry with an exquisite and compact appearance. It features an elegant metallic body, a super-fast cooling system, and a highly integrated modular design. The S1Pro delivers up to 12W of stable and continuous 1470nm laser energy for surgical and aesthetic applications.

Hardware Performance & Key Features

• Up to 12W stable continuous output with best balanced configuration.
• 7-inch RETINA touch display with HDR feature (PPl>340).
• 650nm aiming beam <2mW with adjustable density.
• SMA905 direct fiber connection; supports medical fibers ≥200µm and multi-purpose handpieces.
• Lightweight portable design (≤2KG without case) with compact dimensions (230mm × 175mm × 170mm).
• Super-fast cooling system and highly integrated laser module.

Benefits of Software

• Quick-start, user-friendly operation.
• Longest warranty service policy in the industry.
• Remote service and Wi‑Fi assistance for upgrades/maintenance.
• FDA approval for the device software/hardware as stated.

Clinical Applications

• EVLT (Endovenous Laser Treatment): 1470nm wavelength offers superior cellular water absorption, providing advanced vein ablation at relatively low power settings. This reduces thermal damage to surrounding tissues, lowers postoperative pain and side effects, and reduces bleeding risk compared with conventional 810/980nm lasers.
• Orthopedics - PLDD (Percutaneous Laser Disc Decompression): 1470nm provides optimal absorption by water and collagen for precise tissue vaporization, enabling effective decompression with minimal collateral thermal damage and faster recovery.
• Proctology: 1470nm high absorption in water and hemoglobin enables precise cutting and coagulation with minimal thermal spread, reducing postoperative pain, bleeding, and recovery time.
• Gynecology (cosmetic applications): Provides a rapid, safe, minimally invasive solution for vaginal rejuvenation and other intimate health concerns, with effective tissue treatment at 1470nm.
• Facial Contouring / Aesthetic Surgery: Non-ablative 1470nm penetrates deeply to target fat and water, inducing selective heat to melt fat, tighten skin, and stimulate collagen remodeling with minimal swelling or bruising.

Medical-grade Instruments and Accessories
Handpieces

• Proctology Handpiece — designed for proctology laser treatment (hemorrhoids, anal fissures, fistulas); matched with conical fiber.
• Surgical Zoom Handpiece — variable-zoom, high-efficiency transmission; minimum spot for contactless applications (spider vein, nail fungus, vascular dermatosis).
• Focusing Handpiece — for 300µm/400µm fibers (SMA905); magnification confocal 1:1; spot diameters 1mm/2mm/3mm; for non-contact treatments.
• Surgery Handpiece — compatible with mainstream surgical laser machines using pluggable fibers, SMA905 or FC connectors.
• ENT Handpiece — 7-piece cannula set (10–20cm) supporting 200–600µm fibers; fully autoclavable and ergonomic for otology/rhinology/pharyngeal procedures.
• Lipo Handpiece Pro — supports 600µm fiber; includes 5 cannulas; lengths 100/150/200/250/300mm.
• Lipolysis Handpiece — includes 5 cannulas; supports 200–600µm fibers; multiple length options.
• Gynecology Handpiece — fiber diameter 600µm; length 219.5mm; suitable for vaginal rejuvenation, colposcopy, HPV lesions, mucosal cysts, CIN, etc.

Medical Fibers and Tips

• Polyimide-coated Fiber — high-performance fiber with 300°C heat resistance for proctology, vascular (EVLT), dentistry, ENT, and aesthetics.
• Conical Fiber — hemorrhoid fiber probe 600µm NA=0.22; distal OD 1800µm; CE approved sterile SMA905 connector; special conical design for cutting and coagulation.
• Radial Fiber — standard SMA905 connector; fiber diameters 400/730µm or 600/750µm; glass OD 1.2mm; glass length 10mm; transmittance >90%; ETO sterilization, double packing for 360° radiation.
• Laserlift Fiber Tips — diameters available: 200µm, 300µm, 400µm, 600µm, 800µm, 1000µm.
• Bare Fiber — available in 200µm, 300µm, 400µm; standard lengths (e.g., 3m).

Accessories

• Surgical Clear-View Laser Protection Goggles — grey goggles for 980–2700nm infrared applications; polycarbonate protection and relevant certifications.
• Multilingual Instruction Manual — enhances user experience and regulatory compliance.
• Medical-grade Adapter and Plug — compliant with IEC 60601-1 for medical electrical equipment safety.
• Packing Box — protective storage designed for diode lasers.
• Bare Fiber Holder — facilitates placement/stretching of optical fibers during operation.
• Laser Protective Goggles — essential eye protection for laser operations.
• Bluetooth Medical-grade Foot Pedal (optional) — tested for long life cycles, supporting wired and wireless connectivity.
• Medical-grade Foot Pedal (optional) — waterproof, long-life tested.

Technical Specification (table view)
Wavelength: 1470nm ±10nm
Power: 12W — Best balanced configuration
Display: 7-inch RETINA touch display — HDR feature PPl>340
Aiming Beam: 650nm < 2mW, adjustable density
Fiber Connection: SMA905 — Direct connect of medical fiber: ≥200µm; multi-purpose handpieces
Operating Modes: Continuous (CW) / Pulse / Single Pulse
Power Supply: 100-240V AC, 50/60Hz — Dedicated adapter + optional power cord
Weight (without case): ≤2KG NW
Dimensions: 230mm × 175mm × 170mm

Caractéristiques / Spécifications techniques

• Wavelength: 1470nm ±10nm
• Maximum Power: 12W
• Display: 7-inch RETINA touch with HDR (PPl>340)
• Aiming beam: 650nm <2mW (adjustable)
• Fiber interface: SMA905; supports ≥200µm fibers
• Operating modes: CW, Pulse, Single Pulse
• Power input: 100–240V AC, 50/60Hz
• Weight (no case): ≤2 kg
• Dimensions: 230 × 175 × 170 mm
• Certifications / Standards compliance: IEC 60601-1, IEC 60601-1-2, IEC 60601-2-22, IEC 60825-1, IEC 62304, IEC 62366-1; ISO 14971, ISO 10993-1, ISO 15223-1 (as listed)
