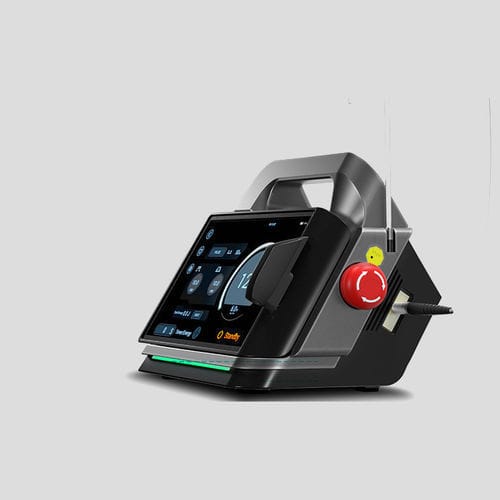

Dermatology laser S1-K12

skin rejuvenationlipolysisgynecological surgery

Overview
Compact, portable 1470 nm facelift laser system, model S1-K12, designed for minimally invasive aesthetic and certain surgical procedures. Supports standalone 1470 nm emission or combined 1470 nm + 980 nm operation for tailored thermal and hemostatic effects. Suitable for clinics requiring a lightweight, battery-capable device with modern interface and medical-grade compliance.

Key Features

• Classic 1470 nm wavelength optimized for adipose and dermal remodeling.
• Hybrid option: combined 980 nm for enhanced coagulation and hemostasis.
• Compact, lightweight design for easy handling and portability.
• Medical-grade hardware and software for stable clinical operation.

Hardware Performance

• Display: 7-inch HD touch-screen for clear visuals and rapid response.
• Housing: aluminum-magnesium alloy case for thermal stability and durability.
• Weight: net weight ≤ 2 kg for portability.
• Battery: built-in rechargeable battery (technical table lists 3350 mAh; some references indicate 2850 mAh with ~2 hours continuous operation).
• Optical output: supports up to 12 W, single-wavelength or simultaneous 1470 nm and 980 nm output.
• Fiber interfaces: SMA905 compatible for 400 μm and 600 μm medical fibers.

Software Benefits

• User-friendly OS with fast response and minimal latency.
• Built-in WiFi for connectivity and software/clinical protocol updates.
• Soft shutdown and data protection features.
• OEM/customization options for clinical workflows and dealer requirements.

Clinical Applications & Benefits
Facial Contouring / Endolifting
Minimally invasive technique using 1470 nm energy to stimulate collagen remodeling and adipose reduction, intended to lift and tighten facial and neck tissues with minimal downtime.

• No or minimal downtime
• Immediate clinical improvements
• Long-term tissue remodeling
• Cost-effective outpatient option
• Simplified and safe procedure when used per protocol
• Applicable to various skin types

Wavelength rationale (facial & body applications)

• 1470 nm: non-ablative, high absorption in fat and water—effective for deep tissue thermal remodeling.
• 980 nm: higher absorption in water and hemoglobin—useful for coagulation and hemostasis.
• Hybrid 1470 nm + 980 nm: combined effects enable controlled tissue contraction and reduced bleeding/bruising.

Areas treatable (examples)

• Forehead lines: wrinkle reduction and mild lifting
• Neck: contouring and tightening
• Jawline and chin: fat reduction and definition
• Periorbital area: reduction of laxity and fine lines
• Cheeks and nasolabial folds: collagen stimulation and improved elasticity

Body Lipolysis / Body Sculpture
Minimally invasive laser-assisted lipolysis for localized fat reduction and skin tightening (abdomen, thighs, arms, back, hips, buttocks, flanks, knees), enabling outpatient procedures with immediate and sustained contouring effects.

Vascular / EVLT (Endovenous Laser Treatment)
Endovenous treatment using radial fibers (360° radial tip) for uniform energy delivery, effective vein closure, reduced perivascular damage and improved ultrasound visibility; includes safety markings for controlled pullback.

Orthopedics / PLDD (Percutaneous Laser Disc Decompression)
Minimally invasive percutaneous treatment for contained disc herniation: targeted vaporization of nucleus pulposus water to decrease intradiscal pressure and reduce nerve compression, performed outpatient with rapid recovery.

Gynecology
Applications include vaginal laxity treatment, urinary incontinence adjunctive therapy, and mucosal rejuvenation; laser offers precise thermal control for cutting, coagulation and vaporization with limited collateral damage.

Proctology
Laser management options for hemorrhoids, fissures, fistulas and pilonidal sinus aimed at reduced intraoperative blood loss, less postoperative pain, faster recovery and improved cosmetic outcomes.

Technical Specification

• Wavelength: 1470 nm (optional/combined 980 nm)
• Max optical output: 12 W
• Display/Control: 7-inch HD touch-screen
• Aiming beam: 650 nm < 5 mW
• Fiber connection: medical fibers 400 μm / 600 μm, SMA905
• Operating modes: Continuous Wave (CW) / Pulsed
• Power supply: 18 VDC 5 A
• Battery capacity: 3350 mAh (table); page references 2850 mAh ≈ ~2 h operation
• Net weight: ≤ 2 kg
• Dimensions (L×W×H): 26 cm × 12.5 cm × 20 cm

Standards & Compliance

• IEC 60601-1:2020
• ISO 14971:2019
• IEC 60601-1-2:2020
• ISO 24971:2020
• IEC 60601-2-22:2019
• ISO 10993-1:2018
• IEC 60825-1:2014
• ISO 15223-1:2021
• IEC 62304:2015
• IEC 62366-1:2020

Characteristics / Technical summary

• Model: S1-K12 (1470 nm facelift laser)
• Wavelengths: 1470 nm (standard), 980 nm (optional/combined)
• Max power: 12 W
• Display: 7-inch HD touch-screen
• Fiber interfaces: SMA905 for 400 μm and 600 μm
• Modes: CW and Pulsed
• Battery: 3350 mAh (table) / 2850 mAh referenced (~2 h)
• Net weight: ≤ 2 kg
• Dimensions: 26 cm × 12.5 cm × 20 cm
• Compliance: listed IEC/ISO standards
