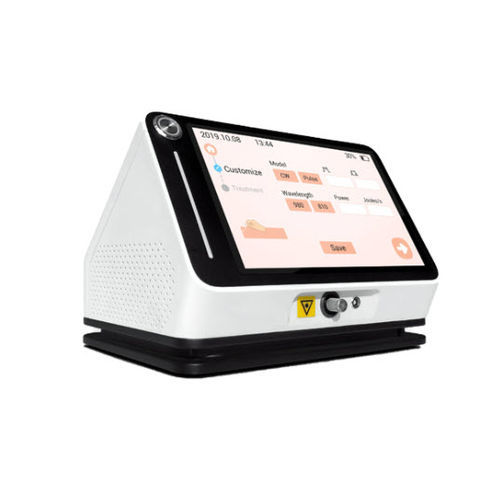

Dental laser M3

podiatrydiodetabletop

Overview An entry‑level podiatry foot therapy laser designed for clinical foot care and outpatient use. The M3 delivers non‑invasive 980 nm laser therapy to reduce pain, inflammation and swelling, and to promote tissue healing using targeted wavelengths and interchangeable handpieces. The system is optimized for ease of use with preset protocols and a compact footprint suitable for clinics and mobile consultations.

Key Features

• Compact, ergonomic design focused on clinical usability in podiatry settings.
• 30+ preset treatment protocols for common podiatry indications with an intuitive touchscreen interface for quick setup.
• Patented laser stabilization control reducing heat build‑up for stable, quiet operation during extended treatments.
• Multiple operating modes (CW / Pulse / Single Pulse) and selectable handpieces to adapt energy delivery to specific lesions.
• Fiber compatibility: 400 µm and 600 µm fibers with SMA905 connector; adjustable aiming beam (650 nm <5 mW).

How 980nm Laser Works on Nail The 980 nm wavelength penetrates nail tissue effectively and is preferentially absorbed by target structures while limiting collateral heating of surrounding tissue. This allows targeted treatment of onychomycosis and other nail pathologies when using appropriate handpieces, delivering therapy that is generally well tolerated and minimally painful.

Podiatry Application

• Matricectomy: precise laser ablation of the nail matrix for ingrown toenail management.
• Vascular lesions: targeted treatment of spider veins and telangiectasia on the foot.
• Corns & callus: controlled laser debulking and remodeling of hyperkeratotic lesions.
• Nail fungus (Onychomycosis): localized laser therapy to reduce fungal load and support healthier nail regrowth.
• Wart removal: laser ablation of plantar and periungual warts.
• Tissue inflammation: reduction of local inflammation to support pain relief and healing.

Advantages of Laser Treatment Minimally invasive and drug‑free option for targeted pain and inflammation control. Precise energy delivery enables tissue repair and faster recovery with minimal downtime. Procedures are typically well tolerated with low incidence of adverse effects when used according to protocol.

Technical Specifications

• Wavelength: 980 nm
• Power: 10–15 W (adjustable)
• Aiming Beam: 650 nm <5 mW, adjustable density
• Fiber Connection: 400 µm and 600 µm fibers with SMA905 connector
• Operating Modes: Continuous (CW) / Pulse / Single Pulse
• Power Supply: 18 VDC, 5 A
• Dimensions (L*W*H): 210 mm * 160 mm * 150 mm
• Weight: ≈1.9 kg (composite materials)
• Display: 7‑inch HD touch screen / Smart OS
• Compliance / Standards: IEC 60825‑1; IEC 60601‑1 series; ISO 10993‑1 (biocompatibility) — consult product documentation for full list.
