veterinary radiography flat panel detector / for pediatric radiography / portable / wireless
PIXX 1212

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product

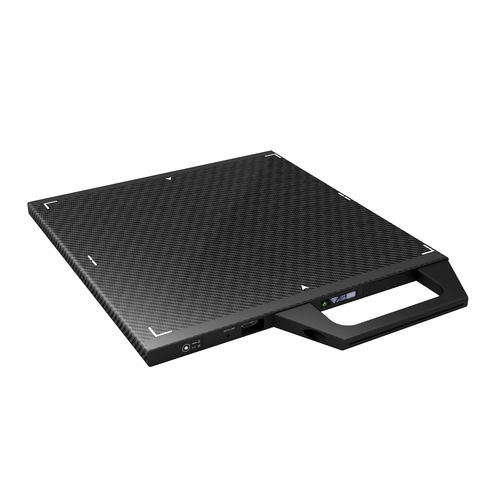

veterinary radiography flat panel detector veterinary radiography flat panel detector - PIXX 1212
{{requestButtons}}

Characteristics

  • Applications:

    for veterinary radiography, for pediatric radiography

  • Options:

    portable, wireless

  • Dimensions (inches):

    12 x 12

Description

Features
High Image Quality High X-ray Sensitivity High Speed Image Gigabit Wi-Fi IEEE 802.11ac Light & Slim Design Less than 2Kg with battery Internai Image Memory Image saved up to 200 images Web ViewerImage review from any mobile devices

Application
Equine / Large Animal : Ultra Light Weight (1.9 kg)
Pédiatrie / Néo-Natal : Fit for the NICU and Neonatal isolette trays Podiatrie : Easy and Simple Maneuvering with light weight

Features
Fast image acquisition time Light and slim design
Inner storage : 200 images can be saved m detector Web Viewer : Direct image review from any mobile devices Long Battery life time

Specifications
Application General Radiography
Sensor a-Si TFT array Fiat Panel Detector
Conversion Screen Csl/GOS
Active Area 12x12 inch(287 mm x 287 mm)
Sensor Pixel 2,048 x 2.048(4.1 M pixels)
Pixel Pitch 140 um
Image Data 16 bit
Trigger Mode AED(Automatic Exposure Detection), Manual Trigger
Calibration Mode ACC(Auto Calibration Control), Manual Calibration
Data Transfer Time Less than 1 sec.
Capture Cycle Time 3~5sec.(Approx.)
Wired Interface (Data Output) Gigabit Ethernet
Wireless Standard IEEE 802.1 lac
Display OLED 128x32
Dead Space 5.8 mm
Dimensions(W x L x T) 308.5mm x 319.5mm x 15mm
(Cassette-size for the standard table or wall Bucky)
Weight 1.5kg(Without Battery)/1 9kg(lncluding Battery)
Battery Type Lithium ion Polymer Battery
