Veterinary dental software Romexis®

for veterinary clinicshospitalmanagement

Overview
Planmeca Romexis® is imaging software for veterinary clinics that consolidates 2D and 3D image acquisition, viewing and processing in one platform. It includes tools for image enhancement, measurement, drawing, annotation and veterinary dental radiograph evaluation.

All-in-one veterinary imaging software
The application supports acquisition and processing of 2D and 3D images within a single interface, enabling measurements, annotations and basic image editing without switching programs.

Streamlined imaging with acquisition templates
Automated intraoral mouth series acquisition: images are auto-numbered and placed in predefined slots in the correct order and orientation. Tooth numbering is supported for both cats and dogs.

Open and compatible
Romexis integrates with practice management systems and supports import/export in standard image formats. Full DICOM support enables connection to hospital imaging systems. Third-party image plate scanners and digital cameras can be connected via the TWAIN interface.

Practical patient record system
Patient record cards are configured for veterinary use and allow registering patient and owner data including species, to facilitate searching and record management.

3D diagnostic and planning tools
The software includes 3D diagnostic and treatment planning tools. 3D datasets are processed alongside 2D images for a seamless workflow between modalities.

Superior visualization

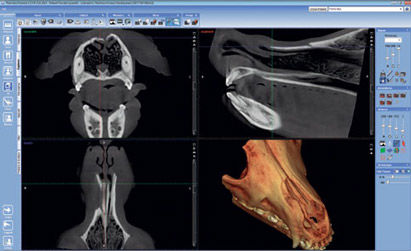

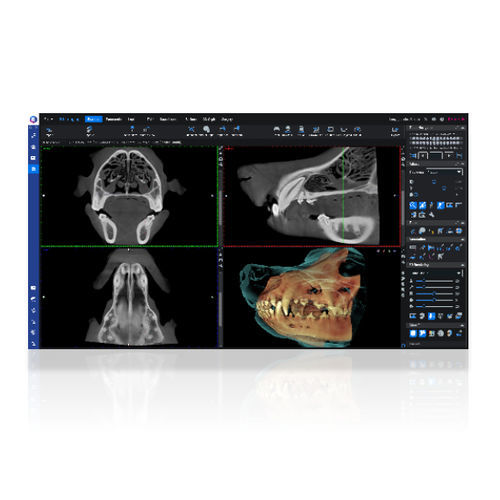

CBCT datasets provide clear visualisation of animal anatomy. 3D images can be navigated, sliced and sectioned to examine internal structures.

Advanced 3D measurements and segmentation
Tools include length, angle and volume measurements, annotation and segmentation features to isolate individual teeth from 3D images, plus comparison tools for follow-up evaluations.

Image sharing and output
3D images can be shared via cloud services or exported to DVD. The software can generate 2D images from 3D datasets and supports direct printing.

Technical data

• Supported 2D modalities: Intraoral; Panoramic; Cephalometric; 2D linear tomography; Photos; Stack images (CBCT slices and panoramic slices)
• Supported 3D modalities: 3D CBCT; 3D photo; 3D surface scan
• Supported photo sources: Intraoral camera; Digital camera or scanner (import or TWAIN capture)
• Operating systems: Windows 7 Pro / Windows 8.1 Pro / Windows 10 64 bit; Mac OS X (note: some modules such as Cephalometric Analysis and 3D Ortho Studio are not supported on Mac OS)
• Image formats: JPEG or TIFF (2D image); DICOM (2D and 3D image); STL (3D image); TIFF, JPEG, PNG, BMP (import/export)
• Image size: 2D X-ray image: 1–9 MB; 3D X-ray image: typically 50 MB–1 GB
• Installation options: Client–Server; Java Web Start deployment
• DICOM 3.0 support: DICOM Import/Export; DICOM DIR Media Storage; DICOM Print SCU; DICOM Storage SCU; DICOM Worklist SCU; DICOM Query/Retrieve; DICOM Storage Commitment; DICOM MPPS
• Interfaces: TWAIN Client; PMBridge (patient information and images); VDDS (patient information and images); InfoCarrier (patient information); Datagate (patient and user information)
• 3rd party integrations: Dolphin Imaging; Nobel Clinician; Materialise Dental Simplant; Straumann coDiagnostiX; Cybermed N-Liten
