Liquid leak detector

for the pharmaceutical industryfor bagsin-line

Product overview

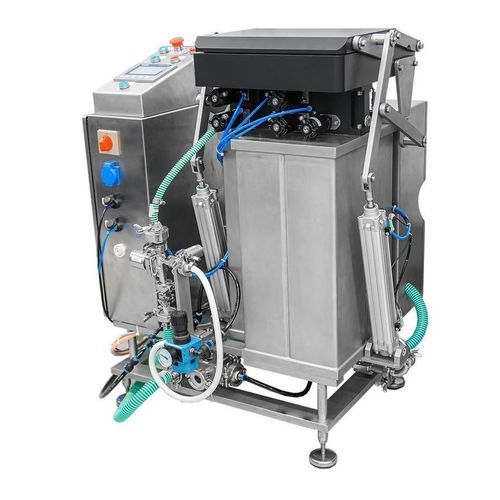

Semi-automatic vacuum leak detection system PLUMAT designed for offline sample testing of filled pharmaceutical bags to verify seal integrity. The vacuum test is non-destructive and does not affect final product quality. The sensor system detects liquid product or condensate escaping from leaks. The machine is suitable for single- and multi-chamber bags and is configured for a range of bag volumes. Depending on bag dimensions, the machine can process multiple bags per test chamber. Test chambers include full-flow bag holders to detect holes across the entire bag surface; holders are removable for format change and cleaning.

Applications and features

• Suitable for single- and multi-chamber liquid product bags
• Compatible materials: single or multilayer polyolefin films (e.g., PP, PE), PVC, EVA
• Format/volume range: 50 ml to 6,000 ml
• Semi-automatic offline sample testing
• Sensor detection of leaking liquid or condensate

Characteristics / Technical specifications

• Semi-automatic vacuum leak detection system for offline sample testing of filled pharmaceutical bags
• Gentle vacuum test method without impact on product or packaging
• No negative effect on final product quality from the vacuum test
• Sensor system detects leaking liquid or condensate
• Suitable for single- and multi-chamber bags
• Designed for multiple bag volumes; can process several bags per test chamber depending on dimensions
• Test chambers with full-flow bag holders to detect holes across the full bag surface
• Removable bag holders for format changes and cleaning
