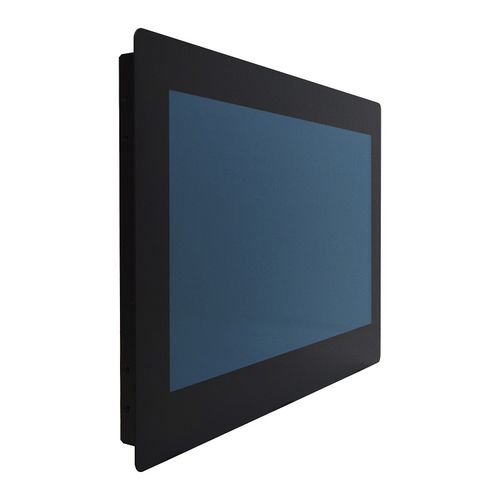

Medical monitor APTDS-M101
high-definitionother display sizesLED

medical monitor
medical monitor
medical monitor
medical monitor
Add to favorites
Compare this product


Characteristics

Applications
medical
Resolution
high-definition
Display size
other display sizes
Technology
LED
Options
multi-touch, high-brightness

Description

10.1" 1280x800 PCAP touch, HDMI/VGA/DVI interface, open frame monitor Features 10.1" 1280X800 with 16:10 aspect ratio Wide view angle(H/V): 170/170 degree Input video signal interface: HDMI, VGA, DVI PCAP touch with USB touch interface Open Frame Monitor Rear VESA Mount, Optional Side Flanges Display Size 10.1” LED backlight Panel Resolution 1280 x 800 View Angle 170° H / 170° V Brightness 500 (cd/m2) Contrast Ratio 1300:1 Response Time 25ms Color Support 16.2M colors Touchscreen Type Projective Capacitive Multi-touch Response Time < 10 ms Interface USB Operation Temperature -20-70C Storage Temperature -30-80C Weight 2.6 lbs Power Supply Included Warranty 1 year Parts & Labor Video input HDMI, VGA, DVI STANDARD CONFIGURATION • Industrial-Grade LCD • Multi-Touch Capacitive Sensor (G/G) • Optically Bonded • HDMI/DVI/VGA Input • Powder Coated Steel Housing • Rear VESA Mounts • Optional Adjustable Flange Side-Mounts • USB Plug-And-Play Windows 7+ • Power, Video, Touch Communication Cables Included CUSTOMIZABLE FEATURES • Sunlight Readable/ High Brightness • Android / Windows Integration • Custom Cover Glass and Graphics • Water Resistant Multi-touch • Gloved Touch • Ruggedization

Catalogs

APTDS-M101
APTDS-M101
3 Pages
