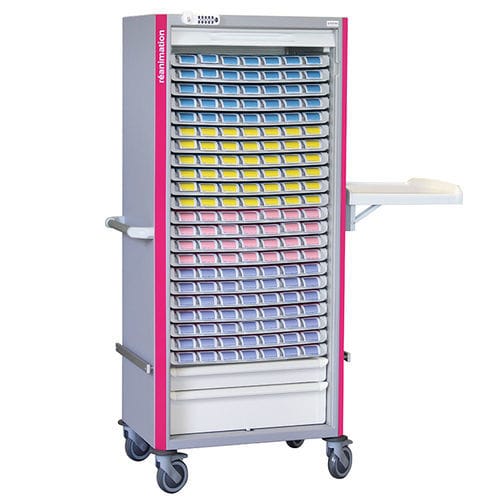

Security cabinet Neop®

for medicinefor fluidsfor medical devices

Product description
Neop® 600 x 400 single-column mobile cabinets are part of a comprehensive range for storage of medication, fluids and medical devices. Designed for ergonomics, hygiene, compactness and versatility, they are suited to nursing rooms, treatment areas and clinical technical platforms. The mobile cabinet accepts modular inserts and offers optional locking and roller-shutter closure for secure storage.

Variations

• Height: 160 cm; 180 cm
• Slides: Horizontal full-height (40 mm pitch; 50 mm pitch; 62 mm pitch); Tilted in upper section
• Bumpers: No; Yes
• Colors: Green apple; Magenta pink; Sky blue

Additional accessories

• 600 x 400 drawers
• 600 x 400 ISO trays
• Bins
• Standard handle
• Modulo XL dispensers
• Telescopic shelf
• Foldable extension shelf

Technical characteristics / specifications

• Complete welded one-piece structure, electro-galvanized steel, epoxy anti-corrosion treated
• Colour strip: 70 μm calendered PVC vinyl film with acrylic adhesive
• Slides: ABS
• Closing system (optional): roller shutter
• Locking system: code lock (optional)
• 4 wheels Ø 125 mm (2 braking + 2 swivelling), wheel and wheel-pin double blocking
• 4 non-marking round stop blocks made of EVA
• Simple non-marking rubber wheels (polyamide cover)
• Empty weight: 48 kg (H. 160) / 52 kg (H. 180)
• Dimensions:
  – H. 160 cabinet with bumpers: L. 745 x D. 580 x H. 1695 mm
  – H. 160 cabinet without bumpers: L. 716 x D. 538 x H. 1695 mm
  – H. 180 cabinet with bumpers: L. 745 x D. 580 x H. 1888 mm
  – H. 180 cabinet without bumpers: L. 716 x D. 538 x H. 1888 mm
• Cabinet marking on request (e.g. department name, floor or establishment)
