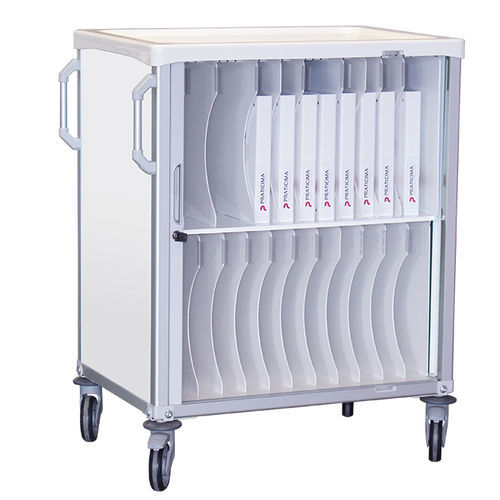

Medical record trolley 8C010BP

plasticanodized aluminumwith tambour door

Product description
The XXL patient file trolley range is designed for storage and handling of medical and X‑ray patient files in large format. Ergonomic layout and modular internal partitions allow optimized file organisation to suit each ward’s workflow. Confidentiality of records is ensured by a removable sliding curtain door. A PC support can be fitted to all trolleys to provide access to digital patient files.

Additional accessories

• Document holder
• Laptop holder
• Basket

Technical specifications

• Dimensions: L. 903 x D. 623 x H. 990 mm
• Empty weight: 61 kg
• Anodised aluminium structure
• ABS working surface with edges
• PS white side panels
• Closure by removable and sliding curtain door
• Key lock system
• 4 wheels Ø 125 mm (2 with brake and 2 swivelling)
• Single polyamide tread
• 4 non‑marking EVA bumpers
• Polystyrene removable inside side panels with 20 mm pitch
• Number of positions per level: 33
• Number of partitions supplied: 20
• 2 vertical pushing handles
• Maximum capacity:
• 2 x 33 files 20 mm
• 2 x 16 files 40 mm
• 2 x 11 files 60 mm (standard)
• 2 x 8 files 80 mm
• 2 x 7 files 100 mm
