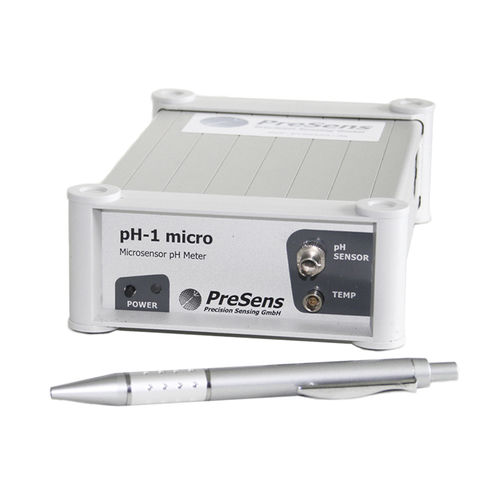

Laboratory pH meter pH-1 micro

benchtopwith thermometer

The pH-1 micro is a precise fiber optic pH meter. It is temperature compensated and used with pH microsensors based on a 140 μm optical fiber. A PC is connected to run the user-friendly software. pH-1 micro is additionally equipped with an analogue output and a trigger input. For use with pH microsensors Simple one-point calibration possible Software included APPLICATIONS pH Measurement in Plants & Animals pH Microsensors can be implemented in plant tissue or even in small animals. New insights in physiological aspects can be obtained. Due to the small size of the probes only a minimal disturbance will occur. pH Measurement in Small Volumes Due to the small dimension of the probe, pH measurements can be done in very small volumes - even in microtiter plates of a higher format like 384 or 1536. No need for reference electrodes - a real step forward, especially in small volumes. Of course, the measurement is independent of electromagnetical fields - this even allows measuring in NMR spectrometers. TECHNICAL Specifications pH sensors - HP5 Temperature sensor - 1 x Pt1000 temperature connector (sensor included) Temperature performance - 0 °C to + 50 °C, resolution ± 0.1 °C, accuracy ± 1.0 °C Power supply - 18 VDC / 5 W (110 - 240 VAC, 50/60 Hz, adapter included) Temperature: operating / storage - 0 °C to + 50 °C / - 10 °C to + 60 °C Relative humidity - up to 80 % (non condensing) Dimensions - 210 mm x 120 mm x 50 mm Weight - 0.65 kg Digital interface - RS232 interface (with RJ connector to serial port, cable included) External trigger - TTL compatible with galvanic isolation (BNC connector)
