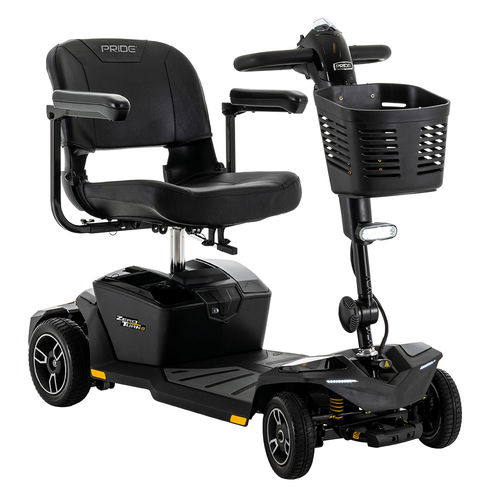

Zero Turn 8 4-Wheel (Jazzy® Zero Turn) Features:
325 lb. weight capacity
Up to 4 mph at 200 lbs
38.25" turning radius
Up to 13.4 miles per charge
Vinyl compact, foldable, molded plastic seat
Standard front basket
Easy-to-grip tiller adjustment knob
iTurn Technology® provides 4-wheel stability with a 3-wheel turning radius
Feather-touch disassembly easily disassembles into 5 lightweight pieces for transport and storage
Charger port located on the tiller lets you conveniently charge your scooter
Delta Tiller with ergonomic wraparound handles lets you operate the scooter with one hand and rest your wrist
CTS Suspension and dual motors provides a smooth, comfortable ride over varied terrain
USB charging port in the tiller lets you charge your smart phone
Full LED lighting package helps you see where you’re going
A standard front basket provides storage
Your choice of six interchangeable color shrouds
*Note Green Moonstone color may appear more silver with hues of green in some lighting
CATEGORY - SPECIFICATION
Model - Zero Turn 8 4-Wheel (Jazzy® Zero Turn)
Weight Capacity - 325 lbs.
Front Tire - 2"x7"
Rear Tires - 2.5"x9"
Maximum Speed1 - Up to 4 mph
Ground Clearance3 - 1.4" at motor, 1.5" at anti-tip, 3.5" at side deck
Turning Radius3 - 38.25"
Length/Width3 - 45.75"/20
Seating3 - Type: Foldable, compact
Weight: 27 lbs.
Material: Black Vinyl
Dimensions: Width: 18", Depth 17"
Seat-to-Ground - 21.5-23.5"
Seat-to-Deck - 17"-18.5"
Weight (w/o Batteries)3 - 120 lbs.
Battery Weight - Battery box 31.5 lbs., batteries 13.5 lbs each
Battery Requirements4,5 - (2) 12V deep-cycle, Size: 22 AH
Per Charge Range1,2 - 13.4 miles at 200 lbs.; up to 11.6 miles at 325 lbs.
