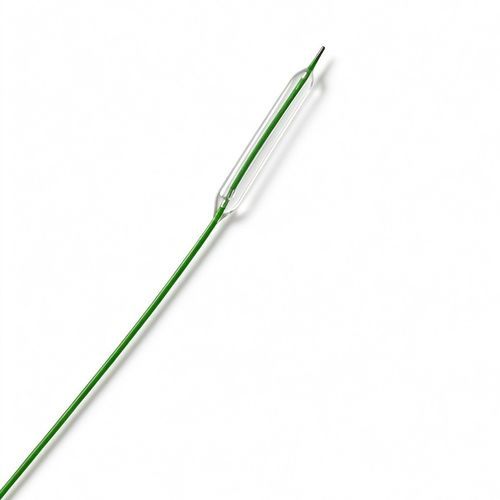

Dilatation catheter Saule™

coronaryballoonatraumatic tip

Description
Saule™ PTCA balloon catheter is indicated for percutaneous transluminal coronary angioplasty to restore myocardial perfusion at localized coronary stenotic lesions. The device is designed for precise delivery, controlled dilation and post-stent dilatation in coronary interventions.

Application

• Balloon dilatation of coronary artery stenosis to improve blood flow and myocardial perfusion
• Post-dilatation following coronary stent placement

Features

• Seamless tip-to-guidewire bonding for improved trackability and to prevent fish-mouthing
• Flexible, atraumatic tip design to cross severe stenotic and calcified lesions while protecting the vessel wall
• Precision laser welding for stepless balloon-to-catheter transition, enhancing pushability and control
• Multi-valve folding with durable hydrophilic coating for low entry profile and enhanced crossability in complex lesions

Specification
Balloon Diameter (mm): 1.5, 1.75, 2.0, 2.25, 2.5, 2.75, 3.0, 3.25, 3.5, 3.75, 4.0
Balloon Length (mm): 9, 10, 12, 14, 15, 16, 20, 24, 25, 30
Nominal Pressure (atm): 6
Rated Burst Pressure (atm): 16
Guidewire Compatibility (inch): 0.014"
Catheter Length (mm): 1400
Distal Outer Diameter (F): 2.7
Lesion Entry Profile (inch): 0.0165

Certificate
CFDA approved

Technical specifications

• Balloon diameters: 1.5–4.0 mm (multiple sizes)
• Balloon lengths: 9–30 mm (multiple sizes)
• Nominal working pressure: 6 atm
• Rated burst pressure: 16 atm
• Guidewire compatibility: 0.014"
• Catheter effective length: 1400 mm
• Distal outer diameter: 2.7 F
• Lesion entry profile: 0.0165 inch
• Certificate: CFDA approved
