Pediatric hospital bassinet TEDDY

Trendelenburg

Product overview

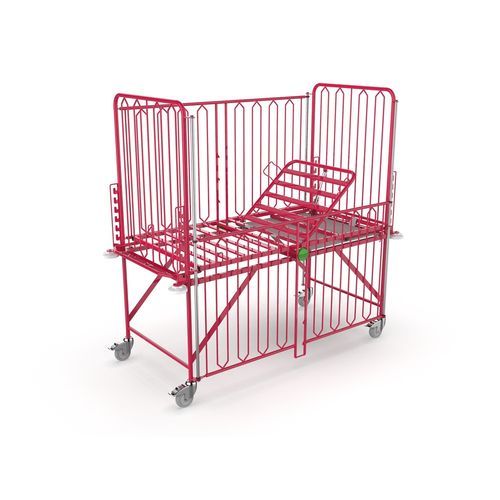

Adjustable pediatric hospital bed TEDDY is designed for hospitalization of patients from several months up to 7 years. Suitable for general pediatric wards, specialized children's units and institutional care. The bed is available in several sizes and a wide range of colours and can be supplied with optional safety accessories, mattresses and pillows.

Height adjustment mattress platform
The mattress platform can be adjusted in height in several steps. Individual segments of the platform are independently positionable to achieve therapeutic or comfort positions.

Trendelenburg and Anti‑Trendelenburg
Supports Trendelenburg and Anti‑Trendelenburg positioning (±12°) to assist treatment and patient handling.

Adjustable backrest
The backrest is adjustable and can be combined with platform positioning to provide a wide range of treatment and recovery postures.

Universal accessory holders
Universal holders at the headboard and footboard ensure compatibility with common accessories such as IV poles, handles, bedside lamps and extension sets.

Mattress holders
Integrated mattress holders secure the mattress during platform positioning and are placed so as not to obstruct evacuation mat deployment.

Foldable side rails
Height‑adjustable side rails can be set to four positions. A simple locking mechanism secures them in place for patient safety.

Brakeable castors
The bed is fitted with 100 mm TENTE castors made of permanent non‑marking material for maneuverability during transport and reliable braking.

Choice of design
Multiple colour options are available to create a child‑friendly environment that supports comfort and well‑being for the patient and accompanying persons.

Technical parameters (table)
Overall dimensions (L x W x H): 81 x 167 x 155 cm
Mattress platform (L x W): 70 x 140 cm
Height of loading area: 74 - 106 cm
Mattress dimensions: 70 x 140 x 11 cm
Height adjustable loading area: Yes
Trendelenburg / Anti‑Trendelenburg: 12° / 12°
Suitable age: several months – 7 years (recommended: 1–7 years)
Wheels: 100 mm, metal (TENTE castors, non‑marking)
Brake: Yes
Weight: 60 kg
Load capacity: 80 kg
Impact wheels: Yes
Accessory holders: 4x (headboard/footboard)

Technical specifications

• Overall dimensions (L x W x H): 81 x 167 x 155 cm
• Mattress platform (L x W): 70 x 140 cm
• Height of loading area: 74 - 106 cm
• Mattress dimensions: 70 x 140 x 11 cm
• Height adjustable loading area: Yes
• Trendelenburg / Anti‑Trendelenburg: 12° / 12°
• Recommended age: 1 - 7 years
• Wheels: 100 mm, metal (TENTE castors, non‑marking)
• Brake: Yes
• Bed weight: 60 kg
• Load capacity: 80 kg
• Impact wheels: Yes
• Accessory holders: 4 (headboard/footboard)
• Foldable side rails: height‑adjustable, 4 positions, locking mechanism
