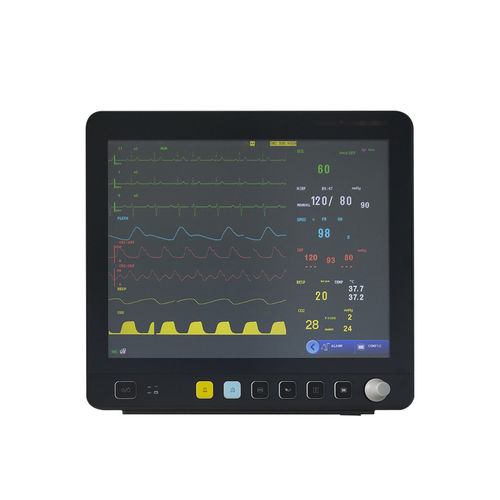

15" color TFT Touch screen,Screen is detachable,Separate module
Application Range:Adult/Pediatric/Neonate/Medicine/Surgery/Operating Room/ ICU/ CCU
Application:Adult/Pediatric/Neonate/Medicine/Surgery/Operating Room/ ICU/ CCU
Built-in rechargeable battery
Date Storage:
Trend diagram/table: 7*24h
NIBP review: 400 events
Wave review: 100min
Alarm review: 100 alarms events
Support drug: conventration titration anaysis
ST Segment:
ST Segment Range: -0.2mV ~ +2.0mV
Accuracy: 0.02mV
SPO2
Range: 0 ~ 100%Resolution: 1%
Precision: 70% ~ 100%; ±2DIGIT
0% ~ 69%: ±no definition given
Pulse Rate
Range: 20 ~ 300bpm
Resolution: 1bpm
Precision: ±3bpm
ECG
5-leads: RA, LA, LL, RL, V
Lead mode: I, II, III, aVR, aVL, aVF, V
Increase: *250, *500, *1000, *2000
Sensivity: > 200uV (Peak-to-Peak value)
Input impedance: > 5 (megohm)
Bandwish: Surgery: 1 ~ 20Hz
Monitor: 0.5 ~ 40Hz
Diagnostic: 0.05 ~ 130Hz
CMRR: ³ 100dB
Polarization Voltage: ± 300mV
Baseline Recovering Time: After defibrillator < 3seconds
Signal Range: 8mV (Peak-to-Peak value)
Calibration Signal: 1mV, precision ±5%
RESP:
Method: RA-LL impedance
Resp Impedance range: 0.3~3 d
Base Impedance range: 200 d ~ 4000 d
Bandwidth: 0.1 ~ 2.5Hz
Resp rate: Adult 0 ~ 120BrPM
Neonate/Pediatric: 0 ~ 150BrPM
Resolution: 1BrPM
Precision: ±2BrPM
Asphyxia Alarm: 10 ~ 40 seconds
NIBP:
Measurement interval of auto mode:
1,2,3,4, 5,10,15,30,60,90,120,180,240,480minutes
Measuring Time of STAT Mode: 5 minutes
PR range: 40 ~ 240bpm
Measure & alarm range:
SYS: 40~270mmHg; DIA: 10~215mmHg;MEAN: 20~235mmHg
Static pressure range: 0~300mmHg (±3mmHg)
TEMP:
Channel: 2
Measure & alarm range: 0 ~ 50 ℃
Resolution: 0.1℃
Precision (no sensor) ±0.1℃
