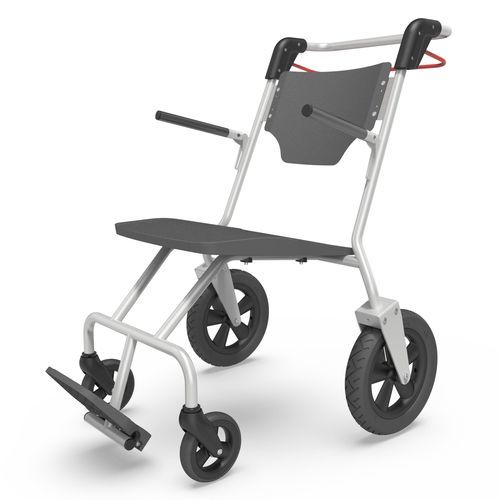

Indoor transfer chair EMMA "easy move"

foldingstackablewith legrest

Overview
EMMA "easy move" is a transfer chair designed for safe, space-efficient patient transfers in clinical environments. It combines a stackable frame, hinged armrests for lateral transfers, a PU-foam seat and an automatic safety braking system (dead-man’s brake). Modular components allow adaptation to facility and patient needs.

Advantages

• Space-saving stackable design for compact storage
• Hinged armrests to facilitate lateral transfer and patient entry/exit
• Lighter construction for easier handling by clinical staff
• Dead-man’s brake to prevent unintended rolling and improve operational safety
• Modular system for flexible component combination and configuration

Technology

• Wheels with polyurethane (PU) tyres for smooth rolling
• Powder-coated steel frame (Ø 25x2 mm)
• Maintenance-free wheels with PU tread

Safety

• Footrest section folds upward automatically when idle

Application

• Designed for comfortable manoeuvring indoors using large front and rear wheels

Product details
Armrest material: steel, powder-coated
Seat material: PU foam
Backrest material: steel sheet, powder-coated (optional PU backrest: Z-EMMA30)
Frame material: Steel frame Ø 25x2 mm, powder-coated RAL 9006
Armrests: hinged
Dimensions (L x W x H): approx. 960 x 710 x 990 mm
Footrest: automatically folds upward when idle
Front wheels: puncture-proof, non-marking PU wheels Ø 150x33 mm
Rear wheels: solid, comfortable, maintenance-free tyres Ø 310x55 mm
Brake system: automatic safety braking system with convenience function (dead-man’s brake)
Version: stackable, space-saving
Total load capacity: 150 kg

Packaging dimensions
Packaging unit: Unit
Box width: 0.80 m
Box height: 1.30 m
Box length: 1.20 m

Technical specifications

• Total load capacity: 150 kg
• Frame: Steel frame Ø 25x2 mm, powder-coated RAL 9006
• Seat: PU foam
• Armrests: steel, powder-coated; hinged
• Front wheels: PU Ø 150x33 mm, puncture-proof, non-marking
• Rear wheels: Ø 310x55 mm, solid, maintenance-free
• Brake: dead-man’s brake / automatic safety braking system with convenience function
• Dimensions (L x W x H): approx. 960 x 710 x 990 mm
• Stackable design for space saving
• Optional PU backrest (order code Z-EMMA30)
