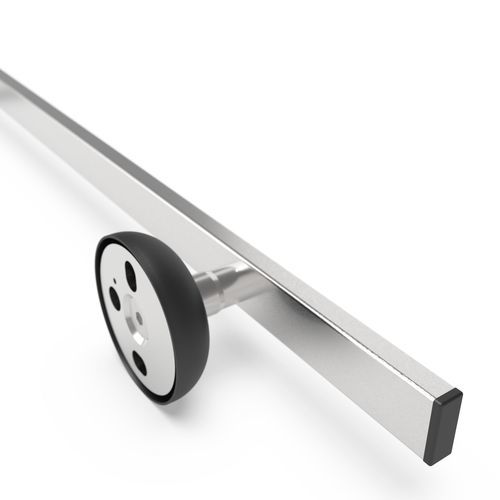

Protection rail Z2N37242

wall-mounted

Product overview
Many rooms, multiple walls, one solution: wall systems from Provita. A discreet, space-saving and effective support for daily medical use. Wide range of variants and a comprehensive accessory selection provide solutions for different clinical needs and installation situations.

Advantages

• Flexible arrangement of required care and supply devices

Product details
Product number: Z2N37242
Distance front edge to wall: 55 mm
Material: Stainless steel / Plastic
Total load capacity: max. 70 kg/m
Load capacity per system (per suspension): 35 kg
Total length: < 900 mm (various rails; special/intermediate lengths possible — please specify)
Rail profile: 25 mm x 10 mm x 1.5 mm
Grounding: Each rail is equipped with a potential equalization that can be flexibly attached to one of the wall brackets depending on installation requirements.
Optional: Cover rosettes and end caps are standard in black (Type A); blue (Type B) or white (Type C) are available at no extra cost. Special wall distances available on request.

Technical specifications

• Distance front edge to wall: 55 mm
• Material: Stainless steel / Plastic
• Total load capacity (kg): 70
• Load capacity per system (kg): 35
• Total length: < 900 mm (various rails); special/intermediate lengths available
• Rail profile: 25 mm x 10 mm x 1.5 mm
• Grounding: potential equalization on each rail, for grounding cable up to ø 2.5 mm²
• Optional rosettes/end caps colours: Black (Type A), Blue (Type B), White (Type C)
