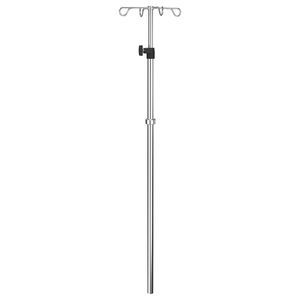

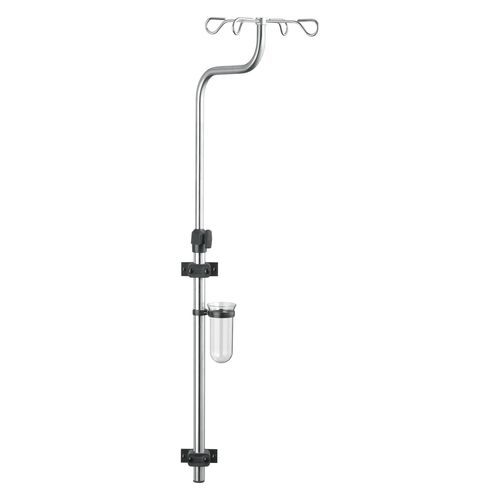

Wall-mounted IV pole I-WAND01
4-hookstainless steelaluminum

Wall-mounted IV pole - I-WAND01 - provita medical - 4-hook / stainless steel / aluminum
Wall-mounted IV pole - I-WAND01 - provita medical - 4-hook / stainless steel / aluminum
Wall-mounted IV pole - I-WAND01 - provita medical - 4-hook / stainless steel / aluminum - image - 2
Add to favorites
Compare this product

Characteristics

Configuration
wall-mounted
Number of hooks
4-hook
Other characteristics
height-adjustable, stainless steel, aluminum

Description

Advantages
  • Secure hanging of infusion bottles and bags for reliable infusion therapy
  • Safe installation above or below light strips and care channels
  • Space-saving wall-mounted solution ideal for clinical environments


Technology
  • All plastic components are lightfast
  • Stainless steel tubes manufactured according to DIN EN 10217-7
  • Materials ultrasonic and eddy-current tested in accordance with EN 10246-9/3
  • Integrated pull-out limiter prevents separation of adjustable tubes
  • Safety bottle cross compliant with DIN ISO 15375
  • Sealing cap prevents ingress of hygiene-sensitive liquids


Safety
  • Built-in safety distance reduces risk of pinching during retraction and extension
  • Rounded bottle hooks minimize risk of injury
  • Hook geometry prevents infusion bottles from slipping out


Application
  • Comfortable height adjustment via screw-height mechanism with integrated, surface-friendly clamping element


Product details
  • Material: Stainless steel / Aluminium
  • Working radius: 200 mm
  • Number of hooks: 4
  • Arrangement of hooks: 90° to each other
  • Type of height adjustment: Screw height adjustment
  • Maximum length/height: 1,040 mm
  • Minimum length/height: 730 mm
  • Total weight (net): approx. 2 kg (incl. drip vessel and glass holder)
  • Wall holder: 2 pieces with 2 mounting holes each for flat head screw M6 (screws not included)
  • Inner tube: 2 x 90° bend
  • Inner tube diameter: Ø 18 mm
  • Outer tube diameter: Ø 25 mm
  • Total load capacity: 8 kg
  • Load capacity per hook: 2 kg


Packaging dimensions
  • Packaging unit: Unit
  • Box dimensions (W x H x L): 0.20 m x 0.26 m x 0.90 m
  • Weight: 2.50 kg


Features / Technical specifications
  • Material: Stainless steel / Aluminium
  • Working radius: 200 mm
  • Number of hooks: 4
  • Arrangement of hooks: 90° to each other
  • Type of height adjustment: Screw height adjustment
  • Maximum length/height: 1,040 mm
  • Minimum length/height: 730 mm
  • Total weight (net): approx. 2 kg (incl. drip vessel and glass holder)
  • Wall holder: 2 pieces with 2 mounting holes each for flat head screw M6 (screws not included)
  • Inner tube: 2 x 90° bend; Inner tube diameter: Ø 18 mm; Outer tube diameter: Ø 25 mm
  • Total load capacity: 8 kg; Load capacity per hook: 2 kg
