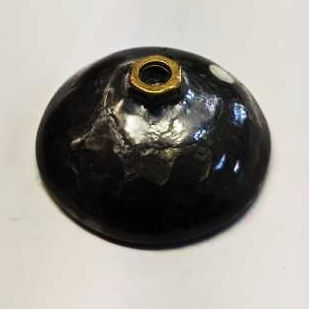

Front protection X-ray protective eye shield

Description
The UKCA-marked lead eyeshield is designed for patient-specific use during kilovoltage X-ray superficial radiotherapy. The shield is an accurately formed spherical low-porosity lead device with internal and external coatings to minimise corneal irritation. It is intended to be positioned under the eyelid to protect the lens while allowing irradiation of the full thickness and width of the eyelids.

Specification

• Lead eyeshield sized to fit under the eyelid to protect the lens while permitting irradiation to the entire thickness and width of the eyelids.
• Available in 4 sizes:
  • Item code ES1: 12.25 mm internal radius, 21.00 mm overall diameter
  • Item code ES2: 13.50 mm internal radius, 23.00 mm overall diameter
  • Item code ES3: 14.75 mm internal radius, 25.00 mm overall diameter
  • Item code ES4: 16.00 mm internal radius, 27.00 mm overall diameter
• Disposable plastic insertion tool available as an accessory.
• Approved disinfection method using the Tristel Trio system.
• Class I medical device; conforms to UK MDR 2002, Medical Devices Directive 93/42/EEC and Medical Devices Regulation (EU) 2017/745; UKCA marked.

Comes with

• Certificate of Conformance for UKCA marking
• User manual

Technical characteristics

• Material: low-porosity lead with internal and external biocompatible coating to reduce corneal irritation
• Intended use: protection of the lens during kilovoltage X-ray superficial radiotherapy; designed to be positioned under the eyelid
• Available sizes and item codes: ES1 (12.25 mm internal radius, 21.00 mm overall diameter); ES2 (13.50 mm internal radius, 23.00 mm overall diameter); ES3 (14.75 mm internal radius, 25.00 mm overall diameter); ES4 (16.00 mm internal radius, 27.00 mm overall diameter)
• Accessories: disposable plastic insertion tool (optional)
• Disinfection: validated method using the Tristel Trio system
• Regulatory: UKCA marked; Class I device; compliant with UK MDR 2002, MDD 93/42/EEC and MDR (EU) 2017/745
