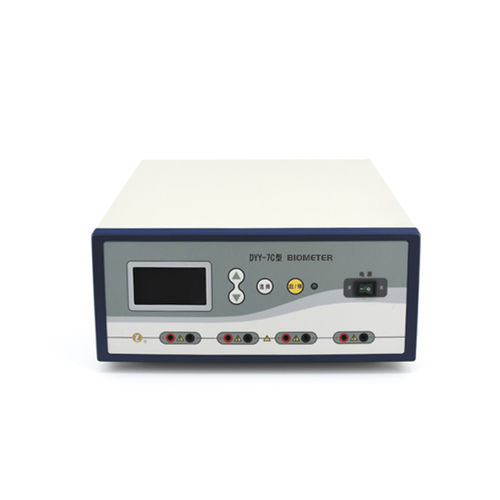

Electrophoresis power supply DYY-7C

electrophoresis power supply
electrophoresis power supply
electrophoresis power supply
Add to favorites
Compare this product


•Power requirement:A.C. 110/220V±10% (50/60Hz ±2% ); •Input power: about 500 VA; •Output voltage: (2-300)V (Increase or decrease:1V/step); •Output current: (5-2000) mA (Increase or decrease:2mA/step); •Rated output power: 300 W •Stability: constant voltage ≤1%; constant current ≤2%; •Adjustment rate:constant voltage ≤2%; constant current ≤3%; •Size(W x D x H): 315 x 290 x 128 (mm); •Weight: about 5.0 kg Features •We adopt the microcomputer processor as the control center of DYY-7C; ON/OFF switch. DYY-7C has the following strong points: small, light, high output-power, stable functions; •The LCD can show you the following info. at the same time: voltage, electric current, pre-assigned time, etc.; •Time warning; •It has the function of storing the operation parameters of last time; •It can work in the constant state of voltage, or in the constant state of electric current, and it can be converted automatically according to the pre-assigned parameters for different needs; •It has the protection function when it is under the circumstances of the unloaded, overload, sudden-load change and when it is beyond the limitation; •Parameters can be adjusted finely during the running;
