Electronic bed scale C315.4B

with LCD displayclass III

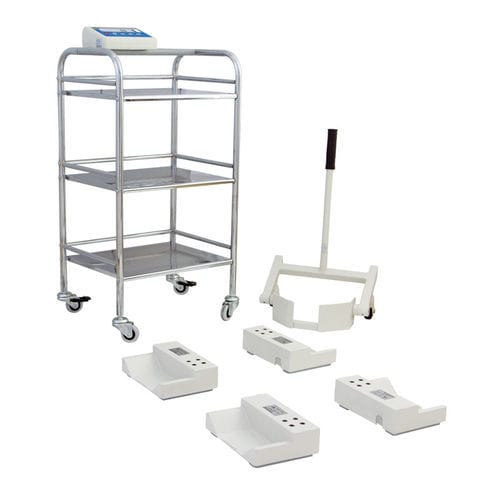

Bed scales series is a precise weighing instruments verified in class III, designed for weighing a patient who lies on a bed. Four weighing modules connected through cables enable placing the scale under a bed of optional size. Lifting the bed is very simple with a jack specially designed for this purpose (it is designed for wheels size between 100 and 200 mm). The scales comes standard with an indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard for simple operation of basic scale functions. Scale is transported on a trolley, which is simultaneously a stand for the scale indicator. Communication interface RS232 Power supply 100 – 240 V AC 50/60 Hz and battery Power consumption max. 5 W Operation time on batteries up to 8 h Operating temperature 0 ÷ +40 °C Relative humidity 10% ÷ 85% RH no condensation Packaging dimensions 1000×820×370, 390×430×250 mm Net weight 18,5 kg Gross weight 28 kg
