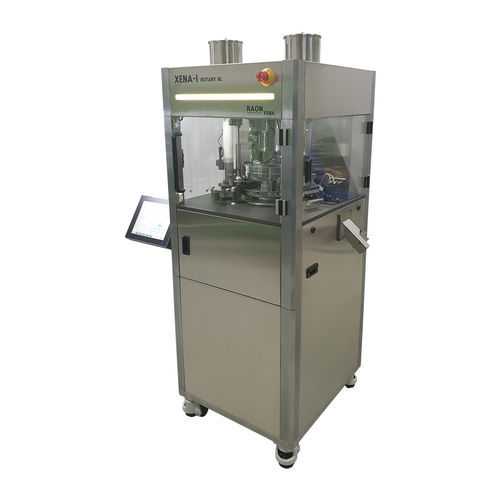

Double-layer press XENA - I ROTARY BL
for tabletsfor the pharmaceutical industryR&D

double-layer press
double-layer press
double-layer press
double-layer press
double-layer press
double-layer press
Add to favorites
Compare this product


Characteristics

Applications
for tablets, for the pharmaceutical industry, R&D, for small-scale production, laboratory, sampling, for research and development, clinical, filling
Other characteristics
rotary, high-speed, double-layer, with touchscreen, fully-automatic, with automatic weight control

Description

The XENA-I ROTARY BL was designed for the production of double-layer and mono-layer tablets. It is ideal for product research and development, process improvement, and clinical or small-quantity production operations. This small-size press is GMP compliant and designed with removable fairing so it is very easy to assemble/disassemble pieces. The software package includes R&D software so that it can be used for tablet production and development. Station :10 Type : Euro D or B or D&B Max. Main Compression : 60KN Max. Main Pre-Compression : 10KN Max. Ejection Pressure : 5KN Max. Filling Depth : 18mm Upper Punch Penetration : 1~4mm Max. Second Layer Insertion Depth : 6.5mm Max. Tablet Diameter : 25mm Max. Tablet Thickness : 8mm Turret Speed : ~40RPM Feeder Speed : ~60RPM Pitch Circle Diameter of Turret : Ø230 Filling Cam : 4~10mm / 8~14mm / 12~18mm Size : 1740(H) x 700(W) x 780(D)mm [Without Hopper, Panel PC] 1880(H) x 1070(W) x 780(D)mm [With Hopper, Panel PC] Power : 220V(3Ph), 50/60Hz, 4KVA Compressed Air : 5bar Weight : 1000KG Approx. 12.1” Panel PC All controls on one screen Sampling: Feeder 2 reverses at the beginning of sampling Punch Tooling: Inching Control & Replace both upper and lower punches in one section Powder Detection: Equipped with powder detection sensor(Feeder 1, 2) Automatic Detection of Filling Cam by type Automatic control device for Filling Depth Alarm and stop by interlock as the door opened during operation Separate special suction devices were used to minimize the mixing of the layers using two first and second-layer suction bars 1st, 2nd Feeder with suction function Multi Recipe Function
