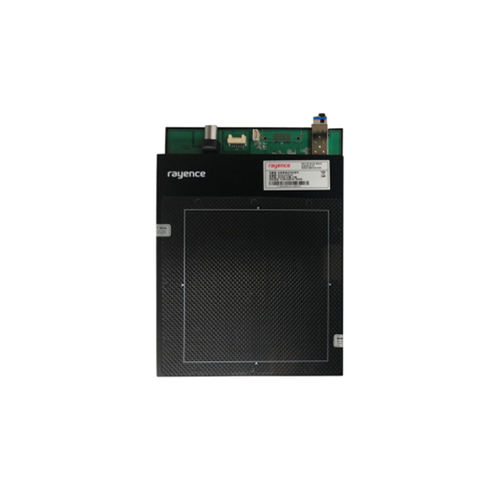

CBCT imaging flat panel detector 1314CF

portablewireless

Dynamic Range: up to 120 kVp A clear image can be created even at low irradiation doses with CsI structure. Fast image detection without image lag Provides Binning mode (2x2, 4x4). Provides Partial mode. Supported FOV: 16x9, 12x9, 8x8, 8x5, 5x5 Specification Sensor type CMOS Pixel Pitch 99 (@1x1) 198 (@2x2) Scintillator CsI Active Pixels 1372 x 1288 (@2x2) 686 x 644 (@4x4) Dimension 230 x 165 x 27 Frame Rate 32 (@2x2) 99 (@4x4) Active Area 135.8 x 127.5 Energy Range 40~120
