Digester for the food industry XT-9930

for environmental analysislaboratoryfor the cosmetics industry

Product Overview

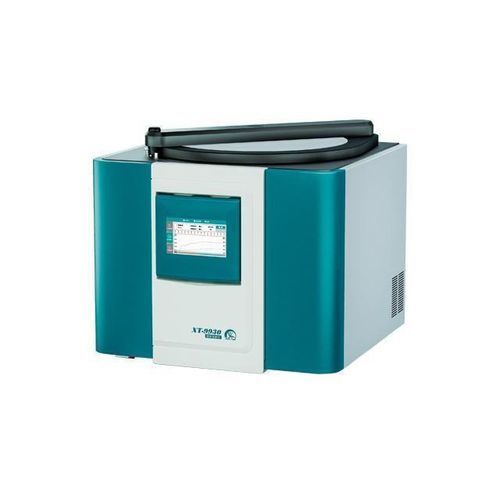

XT-9930 is a top-loaded microwave digestion system engineered for high-throughput sample pre-treatment for trace metal analysis. It integrates a mid-infrared contactless temperature sensor and a non-contact pressure sensor for real-time monitoring, and provides multiple safety protections. XT-9930 supports interchangeable rotors and vessels for a wide range of sample matrices including food, soil, pharmaceuticals and cosmetics.

Features of XT-9930 Microwave Digestion System

• Batch digestion up to 42 samples
• 75L industrial 316L stainless steel cylindrical cavity
• Mid-infrared contactless temperature monitoring
• Non-contact pressure sensor with automatic pressure-release
• Automatic digestion rotor type detection
• Comprehensive safety protection mechanisms

Specification of XT-9930 Microwave Digestion System (table)
Parameter - Specification

• Sample capacity - 42 / 16
• Digestion vessel - 75mL (high-throughput); 100mL (high-pressure)
• Microwave cavity - 75L
• Microwave power - 2400W
• Temperature monitor - Mid-infrared contactless sensor
• Pressure release - Automatic pressure-release mechanism
• Dimension - 650mm x 630mm x 620mm (W x D x H)
• Weight - 70kg
• Power supply - 220V AC, 50/60Hz
• Input power - 3000W
• Fume hood/ventilation - Required

Technical specifications

• Sample capacity: 42 (standard) or 16 (alternate rotor)
• Supported digestion vessels: 75mL (high-throughput), 100mL (high-pressure)
• Microwave cavity volume: 75L
• Microwave output power: 2400W
• Input power requirement: 3000W
• Temperature monitoring: mid-infrared contactless sensor
• Pressure sensing: non-contact sensor with automatic pressure-release
• Construction: 316L stainless steel cylindrical 75L chamber
• Dimensions (W x D x H): 650mm x 630mm x 620mm
• Weight: 70kg
• Power supply: 220V AC, 50/60Hz
• Ventilation: fume hood required
