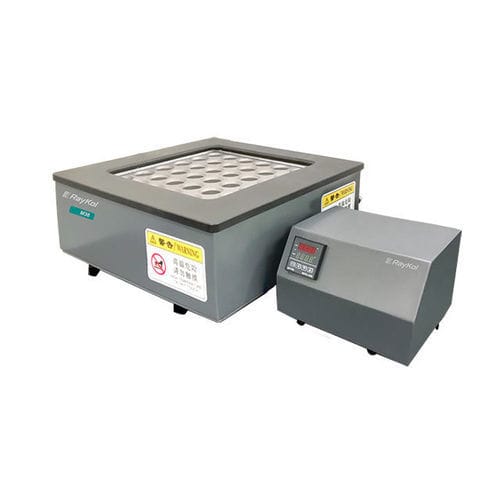

Graphite digester M36

laboratory

Product description
M36 Graphite Digestion System is designed for laboratories that require high-throughput sample pre-treatment for elemental analysis. It performs simultaneous digestion of up to 36 samples and is suitable as a front-end unit for AAS and ICP-MS workflows. The system supports multiple 50 mL digestion vessels and offers precise temperature control up to 450°C.

Features

• Batch digestion of up to 36 samples
• Encircled heating providing uniform heating to sample vessels
• Operating temperature range up to 450°C
• Corrosion-resistant materials compatible with acids and alkalis
• Windows PC software interface with WiFi connectivity for process control

Key specifications

• Product: M36
• Sample capacity: 36
• Digestion vessel: 50 mL (Teflon / polypropylene / Quartz)
• Digestion temperature range: room temperature to 450°C (max. 450°C)
• Heating mode: encircled heating to sample vessels
• Corrosion resistance: resistant to acid and alkali
• Software interface: Windows PC with WiFi connection
• Dimensions: Main unit 41 × 39 × 18 cm; Control 20 × 18 × 14 cm
• Weight: 18 kg + 2 kg
• Power supply: 200–240 V, 50/60 Hz
• Power consumption: 2500 W
• Storage temperature: 0 to 40°C
• Storage humidity: 20 to 85% Rh
• Operating temperature: 15 to 40°C
• Operating humidity: 20 to 80% Rh
