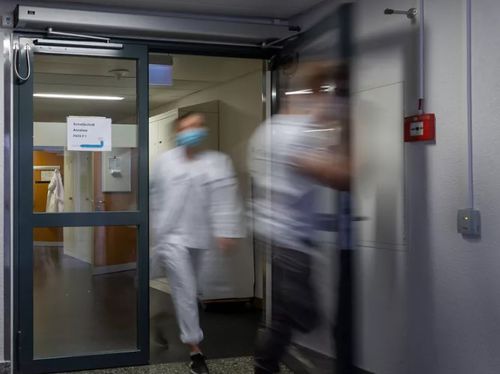

Hospital room door control panel DFA 127 FIRE

The Record DFA127 FIRE is approved for use as a smoke and fire protection door. In case of fire, a signal from the smoke and heat detector or fire alarm system triggers immediate closing of the passage. Closing takes place by spring force. The Record SFR 127’s mechanical sequential control also enables double leaf fire doors to be used. Key features DIN 18 650-compliant technology, approved worldwide. Approved as a hold-open system for fire protection barriers. Can be used with various fire-protection profile systems such as Jansen, Forster, Heroal and Schüco. Features gerontology technology for barrier-free access. Variations Double swing doors with or without master /slave operation. Power saving mode: adjustable opening of one or both door panels (stretcher opening). Integrated sequential closing control for double-leaf fire door applications. Interlock function for two single doors installed consecutively. Direction-oriented opening for oncoming traffic in corridors. Opening or closing without current. Special benefits Compact design thanks to built-in fire protection components Door system can be connected to on-site fire control Own additional control to connect smoke and heat detector ports Can be used with various fire protection profile systems Especially suitable for use as: Fire and smoke protection barriers Universally applicable The Record DFA127 is a universal drive system for the automation of swing doors. It is characterized by sophisticated technology, compact design and especially Record’s legendary smoothness of operation.
