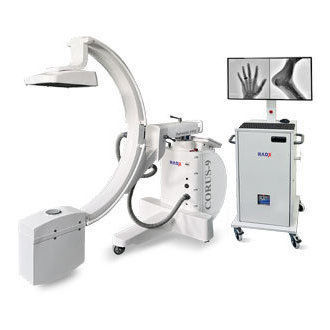

Mobile C-arm Corus 9 FPD

with flat panel detectorwith video column

Overview
The Corus series C-arm is an X‑ray fluoroscopy imaging system designed for use in operating theatres and clinics. Configurations include digital Flat Panel Detector (FPD) and Image Intensifier options to support surgical workflows in orthopaedics, urology, gastroenterology and cardiac procedures. Systems use high‑frequency generators with stationary anode X‑ray tube monoblock.

Corus 9 FPD — Key features

• High-resolution digital imaging with edge-to-edge visibility
• Low-dose fluoroscopy using advanced flat panel technology
• PC-based image memory with effectively unlimited storage
• 236.5 x 236.5 mm flat panel detector for high-resolution images
• Geometrically accurate, distortion-free images with improved grayscale resolution
• 16-bit high dynamic range and low-noise circuitry
• Up to 200 frames per run / cine loop

Additional capabilities (Corus 9 FPD)

• Post-acquisition image enhancement tools
• Annotation and measurement with angle description
• Distortion-free high-quality image output
• Single full HD LED monitor
• Export HD images and cine loops to USB drive
• Patient management and workflow support
• Fluoroscopy APR presets for orthopaedics, urology, cardiology, neurosurgery and gastroenterology

Corus 9 HD 1k x 1k — Key features

• 1k x 1k HD imaging chain for superior image quality
• PC-based image memory and advanced processing options
• High-resolution digital HD camera for sharp capture
• Single full HD LED monitor

Additional capabilities (Corus 9 HD 1k x 1k)

• 200 frames per run / cine loop
• In-built APR system for streamlined workflow
• Export HD images and cine loops to USB drive
• Optional trolley for image memory, monitor and servo stabilizer

Corus 9 HD — Key features

• High-resolution HD image output
• User-selectable brightness and contrast for displayed images
• Image export via USB drive
• 100 frames per patient with LIH

Additional capabilities (Corus 9 HD)

• High-contrast fluoroscopy for moving objects
• Single high-definition LED monitor with active backlight control
• Optional laser aimer for precise anatomical alignment

Corus 9 — Key features

• Compact mobile system with small footprint
• PC-based image memory with extended storage
• 9" triple-field image intensifier (Corus 9)
• Digital console with 5.7" colour TFT display

Additional capabilities (Corus 9)

• Heavy-duty wheels with cable deflector for manoeuvrability
• Dual high-resolution TFT monitor options
• Post-acquisition image enhancements
• Image storage up to 500 frames per patient

Technical specifications

• Flat Panel Detector option: 236.5 x 236.5 mm (FPD models)
• Image chain: 1k x 1k HD imaging chain available (HD models)
• Image intensifier option: 9" triple-field image intensifier (Corus 9)
• Dynamic range and processing: 16-bit high dynamic range, low-noise circuit design
• Frame storage and cine loop: up to 200 frames per run (FPD/HD); 100 frames per patient with LIH (HD); up to 500 frames/patient (Corus 9)
• Display: single full HD LED monitor; optional dual high-resolution TFT monitors
• Image export: export HD images and cine loops to USB drive
• Dose management: low-dose fluoroscopy (FPD models)
• Workflow: in-built APR system; patient management facility
• Controls and enhancements: post-image enhancements; annotation and measurement with angle description; user-selectable brightness/contrast
• Mechanical and support: compact mobile design; heavy-duty wheels and cable deflector; optional trolley and servo stabilizer; optional laser aimer
• X-ray generator and tube: high-frequency generators with stationary anode X-ray tube monoblock
