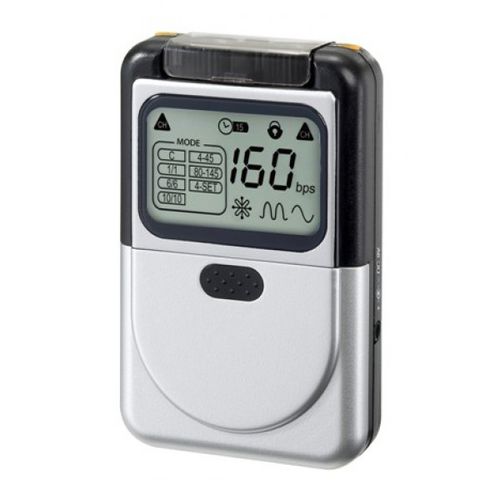

Interferential Stimulator device by Rehab Medic is a battery operated device that includes two controllable output channels.
- Amplitude, mode and duration of the electrical impulses can be altered with the buttons or knobs
- The controls are protected by a cover in order to prevent accidental changes to the settings - Slide the cover down to make adjustments to the controls
9 IF Frequency Modes
- 1 constant mode
- 5 frequency shift modes
- 3 auto sweep Modes
Technical Features
- Amplitude: Adjustable 0-60mA peak into 500 ohm load each channel,constant current
- Carrier Frequency: 4000Hz, Fixed (CH1)
- Modulating Frequency: 4-160bps, Adjustable (CH2)
- Wave form: Symmetrical Balanced Sine Wave
- Interference Pulse Frequency: 4-160 bps, Adjustable, 4 bps/step
- Pulse Duration: 125 μs maximum
Characteristics
-Timer: 15, 30 minute selectable
- Low battery indicator
