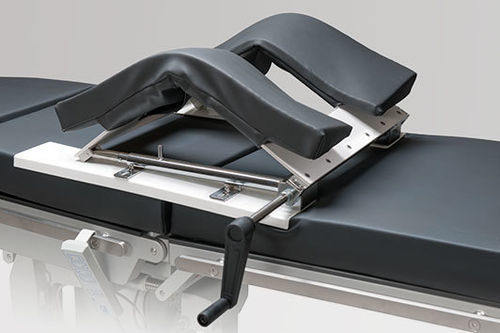

Spine surgery abdominal support 10-485

for operating tablespositioninganti-static

Product overview
The Hernia bridge 10-485 is a height- and width-adjustable patient support designed to be positioned beneath the abdomen during surgical procedures such as spinal surgery. Intended for use by qualified medical professionals in clinical settings. The device provides an adjustable width of 490–550 mm to fit a range of operating tables and delivers equivalent performance to the kidney elevator (10-480) with a different support plate. Cushions are supplied and no clamp is required.

Key features

• Part Number EU: 10-485
• Length: 550 mm
• Width: 570 mm
• Height: 150–270 mm
• Adjustable width: 490–550 mm
• Weight: 7.7 kg
• SWL (Safe Working Load): 75 kg
• Material: Stainless steel, Steel, Antistatic foam
• Cushions included
• No clamp needed

Notes

• Ensure the device fits the patient’s abdominal size before use.
• Do not cover the open central area of the product; covering may cause excessive abdominal pressure.

Technical specifications

• Part Number EU: 10-485
• Length: 550 mm
• Width: 570 mm
• Height range: 150–270 mm
• Adjustable width range: 490–550 mm
• Weight: 7.7 kg
• SWL (Safe Working Load): 75 kg
• Materials: Stainless steel, Steel, Antistatic foam
