Fixed protection screen 10-316

hospital roomtranslucentwashable

Product overview

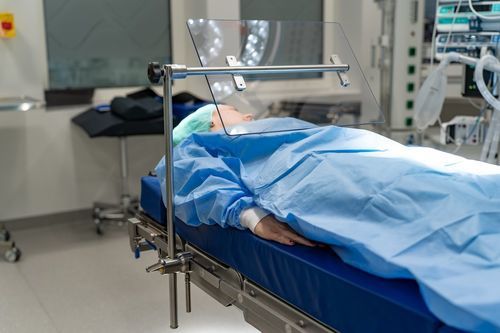

Reison Medical's robot shield for operating tables provides a transparent physical barrier to prevent surgical-robot instruments from contacting unintended areas, helping protect patients and clinical staff during robotic procedures. Designed for integration with operating tables and robotic systems while maintaining visual access to the patient.

Construction and cleaning
Constructed with a stainless-steel frame and a transparent polycarbonate (PC) shield. Surfaces are smooth and compatible with standard hospital disinfectants to facilitate cleaning and infection-control protocols.

Adjustment and locking
The shield mounts to the operating table and can be angled and locked in the horizontal position using a ball joint with 10° increments, allowing precise positioning and secure fixation throughout the procedure.

Included

• Clamp included: 10-304-P
• Part no: 10-316

Applications

• Designed for use in robotic surgery setups and operating-room configurations to protect patient and staff from unintended contact

Technical specifications

• Length: 665 mm
• Width: 350 mm
• Height: 650 mm
• Weight: 4.8 kg
• SWL: 10 kg
• Material: Stainless steel, PC (polycarbonate)
