Dental laboratory workstation with drawers ERGORET CC KFO

with LED lightwith ventilationlifting

Description

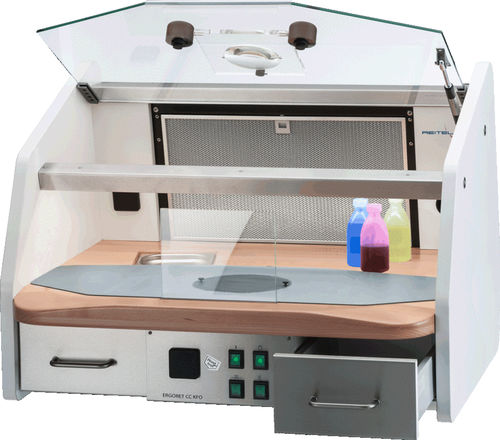

The ERGORET CC KFO orthodontic workstation is a laboratory and practice bench designed to extract dust and methyl methacrylate (MMA) vapours directly at the source. Two integrated extractors and activated carbon filters reduce airborne contaminants. The workstation features an ergonomic beech wood worktop, large protective glass with hinged 4‑diopter magnifying lens and bright LED lighting for visual inspection. It can be connected to multi-place suction units, central suction lines or DUSTY suctions. The optional VARIO lifting table provides adjustable working height to reduce operator strain. Extras include handpiece adapter, anti-slip mat, drawers and stainless steel tray for coarse waste.

Technical features

• Two integrated extractors with activated carbon filters
• Connection to multi-place suction, central suction or DUSTY units
• Beech wood worktop and protective glass cover
• Anti-slip rubber mat
• Handpiece adapter
• Two drawers and stainless steel tray
• Trap for coarse waste
• Hinged magnifying glass (4 diopters)
• Bright LED lighting
• Line voltage: 230 V / 50–60 Hz
• Power consumption: 120 W
• Dimensions (H/W/D): 670 / 925 / 860 mm
• Weight: 60 kg (worktop)
• Compressed air: max. 8 bar
• Housing: stainless steel, wood white
• Order no.: 14805000

Characteristics / technical specifications

• Available colours: white and grey; other colours on request
• Optional VARIO lifting table: adjustable working height 800–1,100 mm
• Ergonomic design to minimise fatigue during grinding, bonding and trimming tasks
• Recommended extraction: DUSTY systems for laboratory environments
• Suitable for orthodontic and dental laboratory applications
• Easy access storage and serviceable filter elements
