Dental laboratory workstation with drawers ERGORET CC

with LED lightbenchtopstainless steel

Description

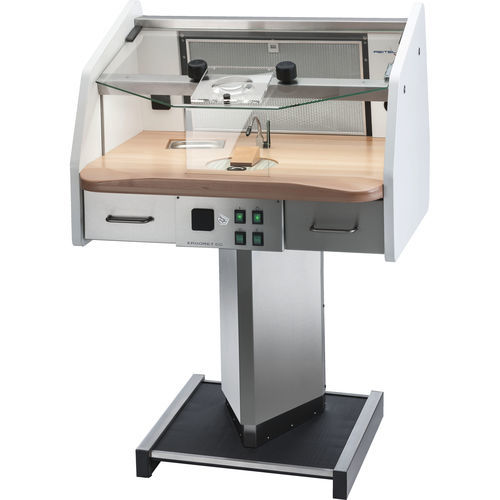

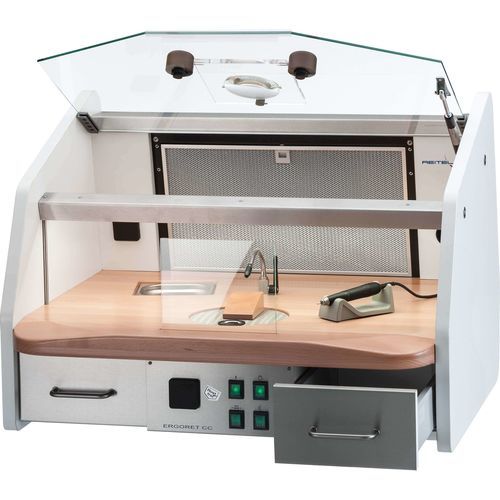

The ERGORET CC ergonomic workstation provides a redesigned workspace to minimise strain and fatigue during precision tasks. A laterally bevelled beechwood base ensures comfortable hand placement. The upward-opening protective glass cover houses a stainless steel tray and a coarse-waste trap, and an air-blast nozzle is activated by a lever. Two spacious drawers with soft inserts provide organised tool storage. An adapter for a handpiece, several sockets and front control elements complete the workstation. The unit can be used as a benchtop or combined with the optional Vario-lifting table for adjustable working height (800–1,100 mm). Back suction extracts dust, gases and fumes from grinding, gluing, trimming and similar operations; an external REITEL DUSTY or central suction can be connected. Integrated LED lighting and a hinged 4-diopter magnifying glass support inspection tasks. Available colours: white, grey, red.

Technical features

• Available as benchtop (white) or with Vario-lifting table
• Vario-lifting: adjustable working height 800 - 1.100 mm
• Beechwood base (laterally bevelled) and protective glass cover (upward opening)
• Air-blast nozzle with lever and adapter for handpiece
• Two drawers with soft insert for tools
• Stainless steel tray and trap for coarse waste
• LED lighting and hinged magnifying glass (4 diopters)
• Dust-protection lamellae and optional knee-activation mounting kit
• Line voltage: 230 V / 50-60 Hz • Power: 120 W
• Dimensions benchtop H/W/D: 670 / 925 / 860 mm
• Weight: 60 kg (benchtop) + 30 kg (Vario-lifting table)
• Compressed air: max. 8 bar
• Housing: stainless steel; wood white finish
• Order numbers: 14804000 (with Vario-lifting), 14803000 (benchtop white)

Characteristics / Technical specifications

• Model: ERGORET CC
• Colours: white, grey, red
• Adjustable working height (Vario-lifting): 800 - 1,100 mm
• Benchtop dimensions (H/W/D): 670 / 925 / 860 mm
• Weight: 60 kg (benchtop) or 90 kg (benchtop + Vario-lifting)
• Voltage: 230 V / 50-60 Hz • Power consumption: 120 W
• Compressed air supply: max. 8 bar
• Magnifying glass: hinged, 4 diopters
• Storage: two drawers with soft insert
• Waste management: stainless steel tray and trap; suction at rear for extraction
• Optional: noble metal filter; dust-protection lamellae; knee-activation mounting kit
• Housing material/finish: stainless steel; wood white
• Order-No.: 14804000 (with Vario-lifting), 14803000 (benchtop white)
