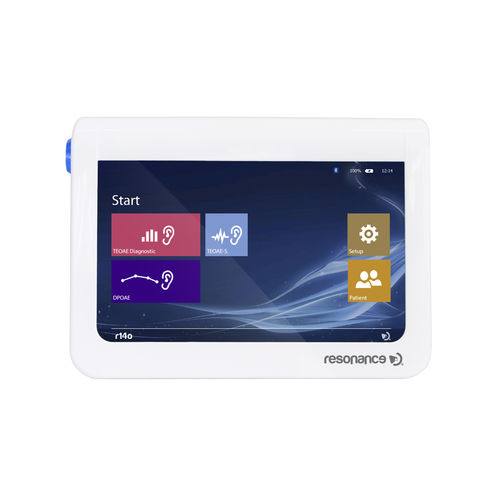

OAE screening system R14O

for adult audiometryfor pediatric audiometrydigital

The new r14o provides a reliable and easy to interpret results of otoacoustics emissions evaluation, important in any newborn hearing screening program. The r14o menu and user interface are designed for quick and precise testing. Pressing few icons, OAE test results can be achieved in just seconds. The intuitive workflow and the large touchscreen make r14o fast and easy to operate. The r14o manages data transfer to PC or to portable printer without plugging in. Wi-Fi connection is available, too. Simplicity and Efficiency. The r14o menu and user interface are designed for quick and precise testing. General Specifications DIMENSIONS AND WEIGHT • L x W x H: 180 x 135 x 23-41 mm • Net weight: 570 g TEST TYPES • TEOAE screening and diagnostic • DPOAE diagnostic REPORTS • Data transfer to PC via included Resonance Management Data Suite • Dedicated report template DATA TRANSFER TO PC • Bluetooth 2.1 USB PORT • No.1 USB host type A (pen drive connection for software upgrade) • No.1 mini USB slave WINDOWS® COMPATIBLE SOFTWARE • Resonance MDS Management Data Suite DISPLAY • 7” TFT Resistive touch screen display • 800 by 480 resolution at 133 ppi 262K colors TEOAE Specifications SAMPLE RATE • 24 bit 44,1ksps STIMULUS LEVEL • 70 – 90 dB pe SPL STIMULUS RATE • 66 Hz WINDOW OF ANALYSIS • 512 samples (3 – 15 ms) TEST TIME • 500 to 1250 stimuli (from 30 to 75 s) STIMULATION PROTOCOL • non-linear click ACQUISITION BANDWIDTH • from 750 Hz to 5 kHz ARTEFACT LEVEL • from 20 to 60 dB SPL TEOAE SCREENING RESPONSE DETECTION • Statistical analysis of signal polarity PROTOCOLS • 3 user definable
