Wet sieving sieve shaker AS 200 JET

air-jetbenchtopfor the pharmaceutical industry

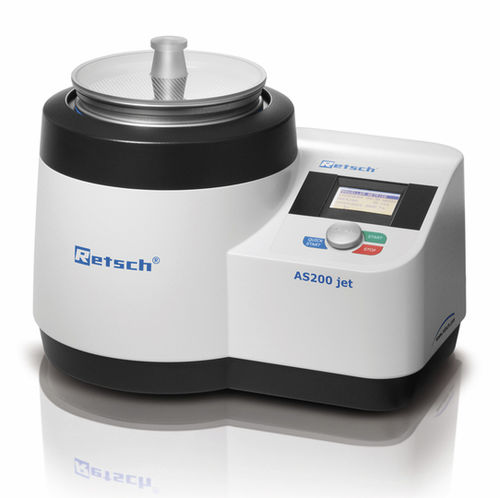

The Air Jet Sieving Machine AS 200 jet is particularly suitable for low density and low particle size materials which tend to agglomerate. It is used with sieves of 10 microns mesh size and up. The procedure is very gentle on the material as no mechanical sieving aids are required. The average sieving time is only 2-3 minutes. The AS 200 jet is specifically designed for test sieves with a diameter of 203 mm/8“ (or 200 mm with adapter). The air jet generated by an industrial vacuum cleaner can be adjusted by using the manual vacuum regulation. Optionally, an automatic vacuum regulation is available. The Open Mesh Function, a procedure which greatly reduces the number of near-mesh particles, provides optimum separation efficiency, excellent reproducibility and a longer service life of the sieves. Sieving time and nozzle speed are conveniently selected with a single button; the settings are shown in the graphic display. The Quick Start Mode is used to start the sieving process under standard conditions without entering parameters. Accuracy & Efficiency Air jet technology for dispersion and deagglomeration Measuring range 10 μm to 4 mm Quick, efficient procedure Open Mesh Function reduces near-mesh particles Digital parameter setting (time, vacuum, speed) Quick Start option Variable nozzle speed Automatic vacuum regulation and cyclone (options) Memory for 9 Standard Operating Procedures (SOPs) Suitable for RETSCH standard sieves Cyclone with holder and collecting receptable To extend the service life of the filters in the vacuum cleaner and for recovery of the sample fraction passing the sieve, we recommend the use of the optional cyclone.
