Ultrasonic laboratory bath UR series

for test sievescompactsingle-phase

Overview

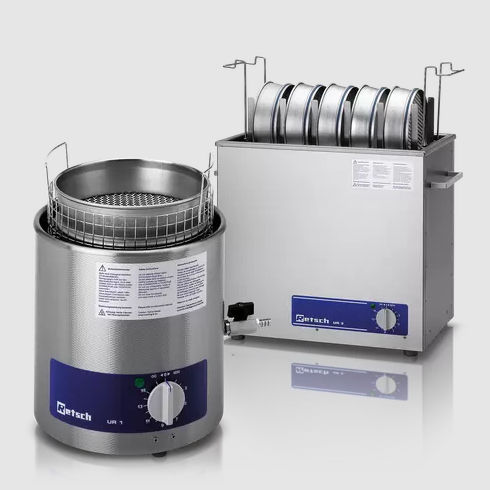

The UR ultrasonic bath series includes three sizes for the rapid cleaning of test sieves and grinding tools. UR 1 accepts test sieves up to 203 mm dia., UR 2 up to 450 mm dia., and UR 3 allows simultaneous cleaning of up to five 200/203 mm test sieves. Ultrasonic cleaning reduces handling damage compared with manual cleaning and can extend sieve service life.

Product advantages

• Fast, gentle and efficient cleaning
• Compact, universal design
• Easy to operate, saving time and cost
• Intensive dispersion and degassing
• Low maintenance
• Durable construction

Functional principle
A high-frequency generator in the bath produces approximately 35 kHz oscillations that are transmitted into the cleaning solution and induce cavitation. Microscopic vacuum bubbles form and collapse within microseconds due to pressure changes. The resulting pulses remove contaminant particles from deep or hard-to-reach areas and promote homogenisation, dispersion and degassing.

Technical data
Applications: cleaning, dispersion, degassing
Feed material: sieves, glass and metal components, suspensions
Batch size / feed quantity*: UR 1: 1 sieve 200 x 50 mm (8" x 2"); UR 2: 1 sieve 450 x 100 mm; UR 3: 5 sieves 200 x 50 mm (8" x 2")
Time setting: 0 - 15 min
Container volume: UR 1: 5.7 l; UR 2: 42 l; UR 3: 45 l
Oscillating tank Ø x H / W x H x D: UR 1: 24.5 x 13 cm; UR 2: 52 x 20 cm; UR 3: 50 x 30 x 30 cm
HF continuous maximum output: UR 1: 35 kHz, 2 x 240 W; UR 2: 35 kHz, 2 x 600 W; UR 3: 35 kHz, 2 x 1000 W
Electrical supply: different voltages; Power connection: single-phase
Dimensions (example): UR 3 W x H x D: 630 x 530 x 350 mm; UR 1 Ø x H: 260 x 260 mm; UR 2 W x H: 570 x 460 mm
Net weight: UR 1: ~5 kg; UR 2: ~21 kg; UR 3: ~27.5 kg
Standards: CE

Specifications

• Applications: cleaning, dispersion, degassing
• Feed material: sieves, glass and metal components, suspensions
• Batch size / feed quantity*: UR 1: 1 sieve 200 x 50 mm (8" x 2"); UR 2: 1 sieve 450 x 100 mm; UR 3: 5 sieves 200 x 50 mm (8" x 2")
• Time setting: 0 - 15 min
• Container volume: UR 1: 5.7 l; UR 2: 42 l; UR 3: 45 l
• Oscillating tank dimensions: UR 1: 24.5 x 13 cm; UR 2: 52 x 20 cm; UR 3: 50 x 30 x 30 cm
• HF output: UR 1: 35 kHz, 2 x 240 W; UR 2: 35 kHz, 2 x 600 W; UR 3: 35 kHz, 2 x 1000 W
• Electrical supply: different voltages; Power connection: single-phase
• Dimensions (example): UR 3 W x H x D: 630 x 530 x 350 mm; UR 1 Ø x H: 260 x 260 mm; UR 2 W x H: 570 x 460 mm
• Net weight: UR 1: ~5 kg; UR 2: ~21 kg; UR 3: ~27.5 kg
• Standards: CE
