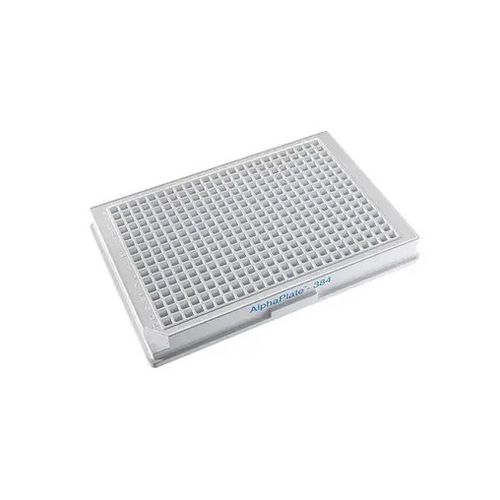

Research microplate AlphaPlate™

for high-throughput screeningwith flat-bottom384-well

The 384-well AlphaPlate™ is a specialized microplate designed for optimal performance in AlphaScreen™ and AlphaLISA™ assays. Featuring low-background properties and precise well geometry, this plate ensures maximum signal-to-noise ratios and consistent results. Its robust construction makes it ideal for high-throughput screening applications. Overview Packaging notes: Cases of 50 are packaged as 2 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Cases of 200 are packaged as 8 sleeves of 25 plates each. Each sleeve as 5 wraps with 5 plates. Well plate dimensions Description - Specification Number of rows - 16 Number of columns - 24 Well volume - 105 µL Recommended working volume - 24 µL- 90 µL Height (mm) - 14.35 Length (mm) - 127.76 Width (mm) - 85.48 Well diameter (mm) - 3.65 Well depth (mm) - 10.4 A1 to top offset (mm) - 9.0 A1 to side offset (mm) - 12.10 Well-to-well spacing (mm) - 4.50 Volume - 105 μL Specifications Physical specifications Color Gray Well Shape Flat-bottom Well Volume 105 µL Working Volume 24 - 90 µL
