Indocyanine green fluorescence system System green

Product Overview
System green from Richard Wolf is a solution for real-time ICG/NIR fluorescence imaging, providing first-class visualization of visceral perfusion and meeting the highest standards of endoscopic imaging. Indocyanine Green (ICG, available as Verdye in many territories) is a tricarbocyanine dye that, when used with NIR camera systems, fluoresces to allow visualization of anatomical structures. ICG/NIR fluorescence imaging is valuable in minimally invasive surgery for intraoperative assessment of visceral perfusion (e.g., enteroanastomosis), visualization of biliary structures in fluorescence cholangiography, and lymph node mapping in oncological procedures (e.g., sentinel lymph node visualization in lymphadenectomy).

• Real-time fluorescence imaging with the ENDOCAM Logic 4K platform
• Precise, intuitive, and interdisciplinary in all its applications

Imaging Modes

• Simultaneous ICG/NIR and white light endoscopy with crystal-clear image quality
• Standard white light endoscopy with high-resolution image quality
• greenICG mode: Combines conventional white light endoscopic image with ICG/NIR image information in real time, allowing detailed tissue differentiation and contrast
• greenICG pure mode: Enables specific, high-contrast visualization and differentiation of tissue structures, such as lymph nodes and lymphatic channels, with grayscale visualization for detailed examination

How Fluorescence Works
Upon administration, ICG binds to plasma proteins and circulates throughout the vascular system. Its absorption spectrum is in the near-infrared range (600 nm to 900 nm), emitting fluorescence between 800 nm and 850 nm. Visualization requires an ICG/NIR camera system, such as System green, enabling intraoperative detection and visualization of fluorescence for clearer anatomical structure identification.

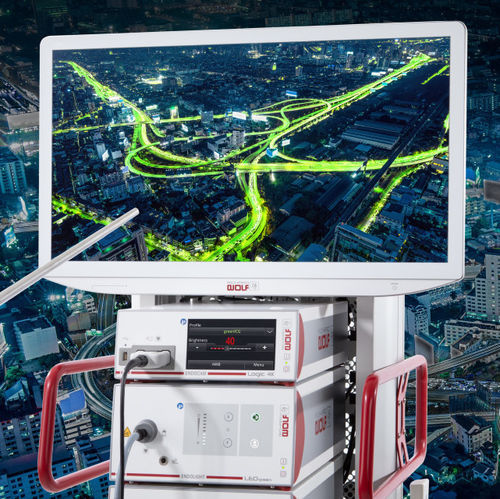

System Components

• ENDOCAM Logic 4K Controller
  • Enables endoscopic imaging in native 4K/UHD resolution
  • Provides additional ICG/NIR image information in two Special Imaging Modes: greenICG (white light with ICG overlay) and greenICG pure (grayscale with ICG overlay)
  • High-resolution, crystal-clear 4K/UHD image quality
  • ICG-ready: Existing devices can be upgraded via software update
• ENDOLIGHT LEDgreen
  • Powerful, laser-free LED light source for ICG/NIR and white light endoscopy
  • Automatic regulation of NIR and white light intensity for detailed fluorescence imaging regardless of ICG concentration
  • Long service life (up to 15,000 hours), low noise, compatible with core nova operating theatre integration system
• Logic camera head green
  • For ENDOCAM Logic platform
  • Suitable for white light endoscopy
  • Digital image processing and signal transmission with dedicated NIR sensor for high fluorescence sensitivity
  • Lightweight, ergonomic, integrated lens (f = 24 mm) for laparoscopy
• PANOVIEW ULTRA telescopes
  • 4K/UHD endoscope for bright, crystal-clear, razor-sharp images
  • Optimized for ICG/NIR applications and standard white light endoscopy
  • Natural color visualization in both white light and System green modes
• Fusion fiber light cables
  • High temperature resistance, long service life, improved flexibility and steel kink protection
  • Recommended for 4K systems due to improved efficiency and high light transmission for uniform illumination

ICG Information

• Indocyanine Green (ICG, also known as Verdye, Diagnostic Green) is a tricarbocyanine dye with hydrophilic and lipophilic properties
• Intended for intravenous injection; rapidly binds to plasma proteins (mainly beta-apolipoprotein B)
• Cleared exclusively through the liver and eliminated via bile, with no metabolism
• Key features: Well tolerated, excellent safety profile, half-life of 3-4 minutes, rapid plasma protein binding, no significant extrahepatic or enterohepatic circulation
• Very rare side effects: nausea and anaphylactic reactions (<1/10,000)

Testimonials
Medical professionals highlight System green as an augmented reality tool that provides essential information for surgery, enhances image quality, and offers excellent contrast for lymph node visualization.
Characteristics / Technical Specifications

• Real-time ICG/NIR fluorescence imaging
• ENDOCAM Logic 4K platform compatibility
• Special Imaging Modes: greenICG, greenICG pure
• High-resolution 4K/UHD imaging
• LED light source (ENDOLIGHT LEDgreen) with up to 15,000 hours service life
• Logic camera head green with dedicated NIR sensor
• PANOVIEW ULTRA telescopes for 4K/UHD and ICG/NIR applications
• Fusion fiber light cables for high light transmission and durability
• ICG dye: intravenous use, rapid plasma binding, hepatic clearance
