Injection system for the pharmaceutical industry MESORAM®

Presentation

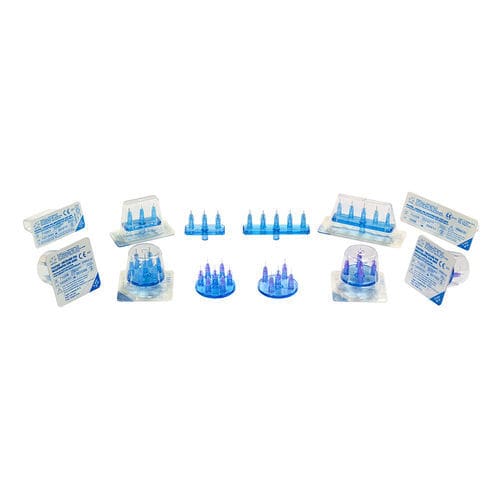

The MESORAM® multi-injector plate is supplied pre-fitted with needles for immediate, safe use. Factory-mounted needles reduce the risk of accidental puncture during preparation. Precisely sharpened needles are designed to minimize patient discomfort. Each plate includes a rigid tip-protection container that maintains sterility until use and secures the needle after treatment for safe disposal.

General features

• Available in linear or circular configuration.
• Configurations with 3, 5 or 7 needles to suit different treatment protocols.
• Female luer connection for attachment to the syringe containing the injectable drug.
• Single-use, provided sterile (EtO sterilization) and CE marked.

Product codes and options
Code | Type | Description | Pcs/Box
710201 | LINEAR WITH 3 NEEDLES | 27G > 0.40 x 4 mm | 36 pcs.
710202 | LINEAR WITH 3 NEEDLES | 27G > 0.40 x 6 mm | 36 pcs.
710203 | CIRCULAR WITH 5 NEEDLES | 27G > 0.40 x 4 mm | 36 pcs.
710204 | CIRCULAR WITH 5 NEEDLES | 27G > 0.40 x 6 mm | 36 pcs.
710205 | LINEAR WITH 5 NEEDLES | 27G > 0.40 x 4 mm | 36 pcs.
710206 | LINEAR WITH 5 NEEDLES | 27G > 0.40 x 6 mm | 36 pcs.
710207 | CIRCULAR WITH 7 NEEDLES | 27G > 0.40 x 4 mm | 36 pcs.
710208 | CIRCULAR WITH 7 NEEDLES | 27G > 0.40 x 6 mm | 36 pcs.
710209 | LINEAR WITH 5 NEEDLES | 30G > 0.30 x 6 mm | 36 pcs.
710210 | LINEAR WITH 3 NEEDLES | 30G > 0.30 x 6 mm | 36 pcs.
710211 | CIRCULAR WITH 5 NEEDLES | 30G > 0.30 x 4 mm | 36 pcs.
710212 | CIRCULAR WITH 5 NEEDLES | 30G > 0.30 x 6 mm | 36 pcs.
710213 | CIRCULAR WITH 7 NEEDLES | 30G > 0.30 x 6 mm | 36 pcs.
710214 | LINEAR WITH 5 NEEDLES | 30G > 0.30 x 4 mm | 36 pcs.
710215 | LINEAR WITH 3 NEEDLES | 30G > 0.30 x 4 mm | 36 pcs.
710216 | CIRCULAR WITH 7 NEEDLES | 30G > 0.30 x 4 mm | 36 pcs.

Packaging and markings
Supplied in single sterile packaging, single-use, EtO sterilized and CE marked.

Colour table — ISO 6009:2016 update
OD (mm) | GAUGE | New colour
0.4 | 27G | Grey
0.3 | 30G | Light Yellow
0.23 | 32G | Green
0.20 | 33G | Black

Technical specifications

• Series/product: MESORAM®.
• Types: multi-injector plates with needles in linear or circular configuration.
• Number of needles per plate: 3, 5 or 7 available.
• Needle gauges and sizes available: 27G (Ø 0.40 mm) lengths 4 mm or 6 mm; 30G (Ø 0.30 mm) lengths 4 mm or 6 mm; references to 32G and 33G shown in the colour table.
• Connection: female luer for syringe connection.
• Packaging: single-use; typical Pcs/Box 36 (see product code table for details per reference).
• Sterilization: EtO (ethylene oxide).
• Marking: CE.
• Integrated accessory: rigid tip-protection container to maintain sterility before use and protect during post-treatment disposal.
• Design: needles with precise sharpening to minimize treatment discomfort.
• Needle colour coding updated in accordance with ISO 6009:2016.
