tablet press / high-speed
KTP 590X

Add to MyMedicalExpo favorites
Compare this product Don’t compare this product
tablet press tablet press - KTP 590X


  • Applications:

    for tablets

  • Other characteristics:

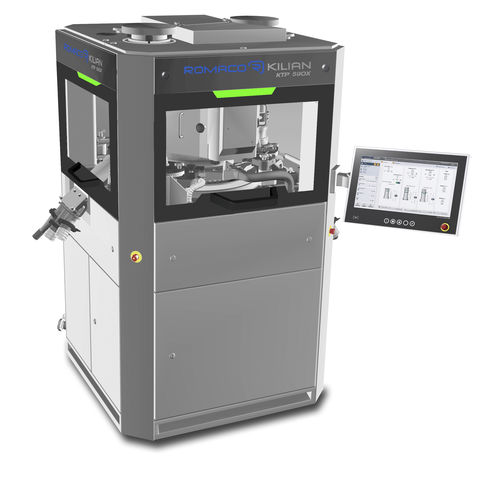

The KTP 590X is a single sided, versatile, high speed tableting machine. Optimised for fast change over between bi- and monolayer tablet mode and for high speed effervescent tablet production. The machine can be equipped with up to 3 sets of compression rollers for best performance, even for mono-layer application.

It is available in the following configurations:

Mono- & bi-layer tablet production
Bi-layer production
Mono-layer production

Effective cooling of the process area to below 30 °C – ideal for processing temperature sensitive formulations such as Ibuprofen
Special compression rollers, bolts and bearings ensure lowest possible friction
Efficient cooling of the torque drive and the V-ring seal (for the die table)

Up to 510,000 tabs/h as mono machine
Up to 510,000 tabs/h also as bi-layer machine
Excellent performance with challenging high volume products such as Metformin and Amlodipin
No conversion of compression stations required for changing the machine configuration
Quick product and format changes: tablet chute and fill shoe can be swung out – no tedious readjustments
Few product contact parts: minimal cleaning effort
2 full size fill shoes
