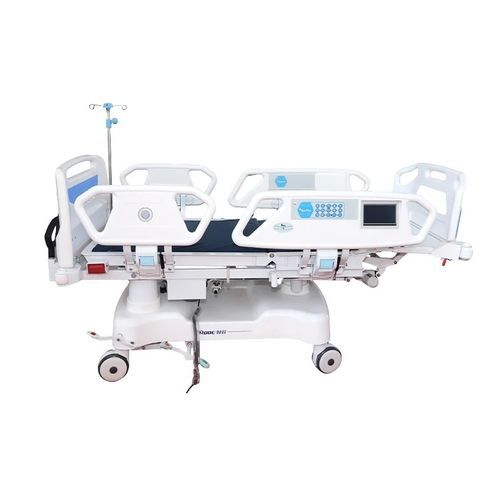

Hospital bed BIC800 plus

intensive careelectricheight-adjustable

Product Introduction:
The BIC800 Plus Electric ICU Bed is an advanced critical care bed engineered to meet the complex and evolving demands of modern intensive care units. Featuring a robust three-column lifting system, this bed offers superior stability, enhanced patient safety, and multifunctional positioning to improve both clinical outcomes and caregiver efficiency. Whether for long-term care, emergency response, or routine ICU procedures, the BIC800 Plus is an indispensable solution for any hospital setting.

Features:

• Three-Column Structure: The innovative three-column design provides enhanced stability and flexible height adjustment, supporting a wide range of patient care positions essential in critical care environments.
• Left & Right Tilting: Facilitates improved pulmonary function, pressure ulcer prevention, and optimized comfort for bedridden patients.
• Total Chair Position: At the touch of a button, the bed transforms into a full chair position, easing caregiver access and enhancing patient independence and comfort.
• X-ray Translucent Backrest: Allows seamless imaging without moving the patient, minimizing risk in intensive care settings.
• Fifth Wheel with Optional I-Drive System: Offers enhanced maneuverability and directional control, with an optional electric-assist driving system (I-Drive) to reduce caregiver effort during patient transport.
• Electric and Manual CPR Function: Both sides of the bed are equipped with electric and manual CPR controls, enabling rapid emergency intervention.
• Angle Indicators: Integrated angle indicators for backrest, Trendelenburg, and reverse Trendelenburg ensure accurate and safe patient positioning.
• Optional Weighing Scale: A built-in scale system can be added for continuous weight monitoring, helping medical staff track patient status without repositioning.

Technical Specifications:

• Model: BIC 800 plus
• Overall size: 2020-2230*1000*625-870mm
• Back section adjustable angle: 0-75° ±5°
• Knee section adjustable angle: 0-35° ±5°
• Trendelenburg / Reverse-Trendelenburg: 0-15° ±1°
• Tilt: 0-12° ±1°
• HI-LOW (height range): 625-870mm
• Castors: Four Dia 125mm castors
• Loading capacity: 230kg
