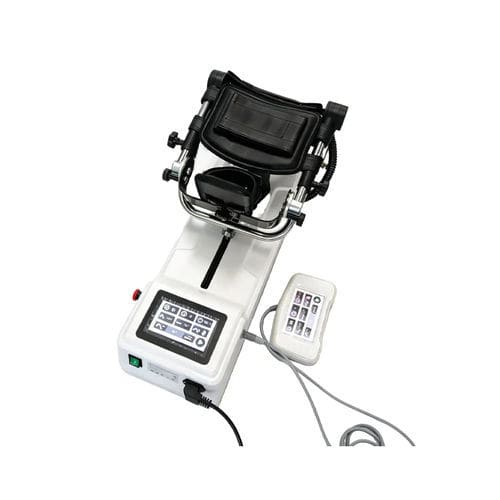

Lower limb continuous passive motion device DCPM-E

hipknee

Introduction
The DCPM‑E is a continuous passive motion (CPM) device for lower limb rehabilitation in pediatric patients aged 5–12. It promotes synovial fluid circulation, supports cartilage regeneration, helps prevent tissue adhesions and relieves joint pain. The unit uses imported integrated components and provides intelligent, CPU‑controlled digital adjustment of motion angle, speed and treatment duration, with ergonomic sizing matched to children's proportions.

Features

• CPU‑controlled operation with clear LCD display for straightforward parameter setting.
• Specifically designed for pediatric patients aged 5–12 years.
• Precise adjustment of motion angle, speed and treatment time via main unit and handheld controller.
• Automatic return function to prevent over‑flexion and over‑extension, protecting patient joints and device from overload.
• Built‑in self‑diagnostic routine executed at startup to ensure safe and reliable operation.

Technical parameters

• Model: DCPM‑E
• Package size: 770 × 350 × 360 mm
• Gross weight: 12 kg
• Knee joint range of motion: -5° to 120°
• Hip joint range of motion: 0° to 100°
• Calf adjustment length (flexibility): 180 mm – 330 mm

Specifications

• Intended patient age range: 5–12 years
• Control: CPU controlled, digital LCD display
• Adjustable parameters: motion angle, speed, treatment time (main unit and handheld controller)
• Safety: automatic return to prevent over‑flexion/over‑extension
• Diagnostics: self‑test at startup
