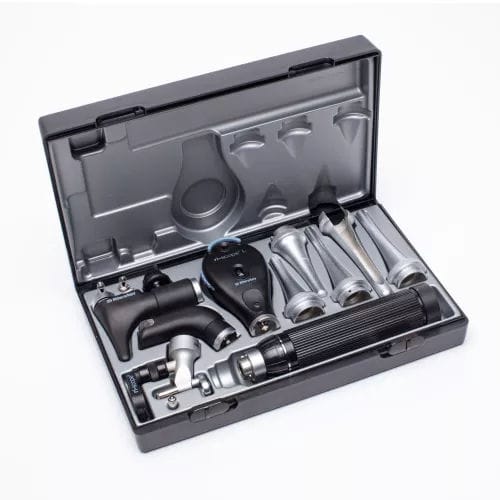

ENT diagnostic medical kit 385 series

veterinarywith otoscope

Overview
The Vet I Otoscope set comprises the ri-scope® Operation otoscope head with reusable metal specula, a choice of lamp type and spare lamp, supplied in an impact-resistant case for veterinary use.

Included in the set

• ri-scope® Operation otoscope Veterinary head
• Bayonet fitting on the head for fast, secure attachment to the handle
• ri-scope® Operation Otoscope Veterinary Metal Specula
  • Unslotted, sterilizable at 134 °C for 10 minutes in steam sterilizer: Ø 4 mm, 83 mm long; Ø 5 mm, 62 mm long; Ø 6 mm, 82 mm long
  • Slotted, sterilizable at 134 °C for 10 minutes in steam sterilizer: Ø 7.5 mm, 68 mm long; Ø 9.4 mm, 92 mm long
• 1 spare lamp (Xenon 3.5 V lamp or Halogen 2.5 V lamp) — 1 pc for the operation otoscope
• Swivel lens (2.5x magnification)
• Impact-resistant case

Features and benefits

• Customer choice of Xenon 3.5 V (XL) or Halogen 2.5 V (HL) lamp
• Swivel lens with 2.5x magnification for enhanced visualisation during examination and procedures
• Moveable, slotted speculum holder that can be locked in any position
• Open design for unhindered access during examination and operation
• All-metal operation otoscope head for long service life
• Reusable chrome-plated metal specula, corrosion-resistant and sterilizable

Product details
Product: Vet I Otoscope
Dimensions (case): 230 x 140 x 46 mm
Ambient temperature (operating): 0 °C to 40 °C
Relative humidity (operating): 30% to 70% non-condensing
Storage / Transport temperature: -10 °C to 55 °C
Storage / Transport relative humidity: 30% to 85% non-condensing
Air pressure (transport): 800 hPa – 1100 hPa


Lamp for ri-scope® Operation Otoscope Veterinary
ri-scope® Operation otoscope Veterinary HL 2.5 V: 2.5 V, 680 mA, mean life span ~20 h
ri-scope® Operation otoscope Veterinary XL 3.5 V: 3.5 V, 700 mA, mean life span ~20 h


Ordering information (selection)
Vet I Otoscope set entries:
ART. NO. 3850 (EU) — HL 2.5 V, C-handle for 2 alkaline batteries, C-type or ri-accu®
ART. NO. 3853 (EU) — HL 2.5 V, AA-handle for 2 alkaline batteries, AA-type or ri-accu®
ART. NO. 3851 (EU) — XL 3.5 V, C-handle for ri-accu® L
ART. NO. 3854 (EU) — XL 3.5 V, AA-handle for ri-accu® L


Operation otoscope Veterinary head (selection)
ART. NO. 10541 (EU) — ri-scope® Operation otoscope Veterinary head HL 2.5 V
ART. NO. 10542 (EU) — ri-scope® Operation otoscope Veterinary head XL 3.5 V
ART. NO. 10542-301 (EU) — ri-scope® Operation otoscope Veterinary head XL 3.5 V with anti-theft security


Spare parts and accessories (selection)
Specula (ART. NO. / REGION / DESCRIPTION):
10881 / EU / Metal Specula Ø 4 mm, 83 mm long
10880 / EU / Metal Specula Ø 5 mm, 62 mm long
10882 / EU / Metal Specula Ø 6 mm, 82 mm long
10883 / EU / Metal Specula Ø 7.5 mm, 68 mm long, slotted
10884 / EU / Metal Specula Ø 9.4 mm, 92 mm long, slotted

Battery handles (selection):
10642 / All / AA type battery handle with rheotronic® for 2 batteries AA or ri-accu® L
10670 / All / C type battery handle, rheotronic®, chrome plated, for 2 C cell batteries or ri-accu®

Charging bases (selection):
10700 / EU / ri-charger® 2.5 V/3.5 V / 100-240 V, black with wall bracket (for ri-accu® rechargeable NiMH battery)
10701 / All / ri-charger® 2.5 V/3.5 V / 100-240 V, black with wall bracket, with US adapter (for ri-accu® rechargeable NiMH battery)
10705 / EU / ri-charger® L 3.5 V / 100-240 V, white with wall bracket, EU (for ri-accu® L rechargeable Li‑Ion battery)


Bulbs (selection)
10602 / EU / HL 2.5 V bulbs for ri-scope® Operation otoscope (human/veterinary), pack of 6 pcs.
10609 / EU / XL 3.5 V bulbs for ri-scope® Operation otoscope (human/veterinary), pack of 6 pcs.


Downloads
Vet I Otoscope downloads available (product documentation and downloads referenced on the product page).


Technical specifications

• Swivel lens with 2.5x magnification
• All-metal operation otoscope head (ri-scope®)
• Bayonet fitting for quick head-to-handle attachment
• Specula: reusable metal, chrome-plated, sterilizable at 134 °C for 10 min
• Specula sizes: Ø 4 mm (83 mm); Ø 5 mm (62 mm); Ø 6 mm (82 mm); Ø 7.5 mm (68 mm, slotted); Ø 9.4 mm (92 mm, slotted)
• Lamp options: HL 2.5 V (680 mA, ~20 h) or XL 3.5 V (700 mA, ~20 h)
• Set includes 1 spare lamp and impact-resistant case
• Operating ambient temperature: 0 °C to 40 °C; Storage/transport: -10 °C to 55 °C
• Relative humidity operating: 30% to 70% non-condensing; storage: 30% to 85% non-condensing
• Air pressure (transport): 800 hPa - 1100 hPa
